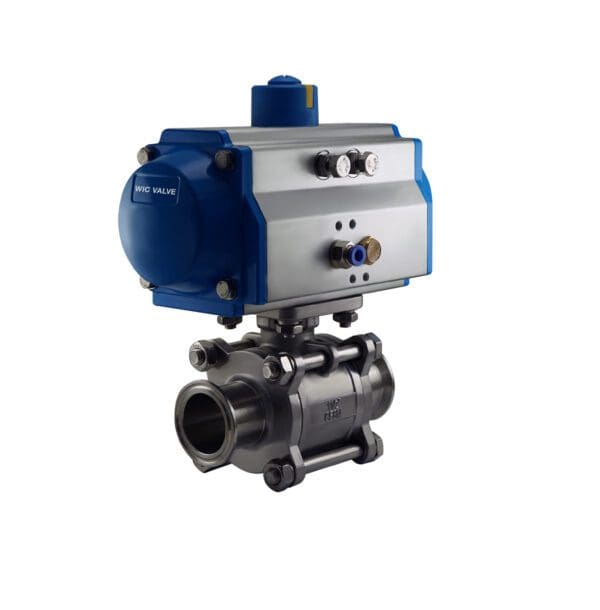

1.5″ Pneumatic Single Acting Air Actuated Tri Clamp Ball Valve

Description 1.5″ Inch Pneumatic Single Acting Spring Return Stainless Steel Air Actuated Tri Clamp Sanitary Ball Valve   PVS series pneumatic air actuated valve ball valve comes with a stainless steel 3-piece ball valve body, it provides a easy installation and maintenance through the slide out body method.  This industrial air actuated valve is used to control the on and off of the valve for media such as air, gas, liquid, water and steam.  PVS Series air actuated ball valve can be installed with a Tri-clamp end connections for easy line removal and it is ideal for sanitary applications. PVS series single acting air actuated ball valve use air pressure to open the valve and springs to close the valve. The characteristic of the air actuated ball valve is that it has a higher flow rate, temperature and pressure compare with the direct acting valve.  Also it is ideal for the hazardous environments.   PVS Series Air Actuator Tri Clamp Sanitary Ball Valve Specifications: Valve Type: 2 Way Normally Closed Standard (Option: Normally Open) Service Media: Air, Gas, Liquid, Water, Steam Operation Model: Air Actuated Single Acting Spring Return (Use Air Pressure to Open and Springs to Close) Actuator Operating Pressure: 100 PSI Standard Actuator Operating Pressure Range: 45 – 120 PSI Body Material: 316 Stainless Steel / CF8M Seal Material: PTFE Operating Pressure: 0 to 1000 PSI at 100 °F Media Temperature: -51 to 230 °C (-60 to 450 °F) Ambient Temperature: -20 to 80 °C (-4 to 176 °F) Port Size: 1-1/2″ Tri-Clamp Installation Hardware: 1 Piece Tube OD 1/4″ X Thread 1/8″ Male Straight Connector Fittings and 1 Piece of Brass Silencer Included   Pneumatic Air Actuator Specifications: Pneumatic Actuator Specifications Actuator Standard ISO 5211, NAMUR, DIN 3337 Operating Pressure Range Min: 45 PSI – Max:120 PSI Operating Media Pressurized Filter Air Operating Temperature –20 to 80°C   3 Pieces Stainless Steel Ball Valve Specification: Operating Pressure: 3/8″ to 2″ : 1000 PSI @ 100°F WOG Operating Temperature: -60 to 450°F Port Style: Full Port Port Connection: Tri-Clamp Mounting Standard: ISO 5211, DIN 3203-M3   Ball Valve Parts and Materials Part Name  Material  Quantity Ball SS 316 1 Body Connector SS 316 / CF8M 1 Body Connector Bolt SS 304 4 Body Connector Nut SS 304 4 Body Connector Washer SS 304 4 CAP SS 316 1 Gland Nut SS 304 1 Joint Gasket PTFE 1 Seat PTFE 2 Stem SS 316 1 Stem Nut SS 304 1 Stem Packing PTFE 1 Stem Washer SS 304 1 Thrust Washer PTFE 1   Pneumatic Air Actuator Internal Structure: 1. Indicator: Position indicator with NAMUR mounting standard. 2. Pinion: High precision pinion is made by nickeled alloy steel.  Fully conform with ISO5211, DIN3337 and Namur. 3. Actuator Body: Extruded aluminum alloy ASTM6005 body. 4. O-Rings: High quality NBR (Buna-N) 5. Pistons: Die-casting aluminum twin rack pistons are treated with hard anodized.  Symmetric mounting position that ensure a fast operation and long cycle life. 6. Travel Adjustment bolts: Two independent external travel adjustment bolts allow ±5° adjustment for both open and close directions. 7. End Caps: Die-casting aluminum powder polyester. 8. High Performance Springs: Preloaded coating springs are made by high quality material for corrosion resistant. 9. Bearing & Guides: Made by low friction compound material to minimize the direct contact between metals.   PVS Series Pneumatic Air Actuator Component Drawing: No.  Name Qty Material   1 Indicator Screw 1 Plastic 2 Indicator 1 Plastic 3 Spring Clip 1 Stainless Steel 4 Washer 1 Stainless Steel 5 Outside Washer 1 PTFE 6 Body 1 Extruded Aluminum Alloy 7 Inside Washer 1 PTFE 8 Cam 1 Alloy Steel 9 O-ring (Pinion Top) 1 NBR 10 Bearing (Pinion Top) 1 Engineering Plastics 11 Pinion 1 Alloy Steel 12 O-ring (Pinion Bottom) 1 Engineering Plastics 13 Bearing (Pinion Bottom) 1 NBR 14 Plug 2 NBR 15 O-ring (Adjust Screw) 2 NBR 16 Washer (Adjust Screw) 2 Stainless Steel 17 Nut (Adjust Screw) 2 Stainless Steel 18 Adjust Screw 2 Stainless Steel 19 Piston 2 Cast Aluminum 20 Guide (Piston) 2 Engineering Plastics 21 Bearing (Piston) 2 Engineering Plastics 22 O-ring (Piston) 2 NBR 23 Spring-Integrated 0~12 Spring Steel 24 O-ring (End Cap) 2 NBR 25 End Cap 2 Cast Aluminum 26 Cap Screw 8 Stainless Steel 27 Stop Screw 2 Stainless Steel 28 Nut ( Stop Screw) 2 Stainless Steel   PVS Series Air Actuator Operating Principle: Pressurized air is introduced to Port A that forces the pistons outward.  It causes the springs to compress and the piston turns counterclockwise which opens the valve.  Meanwhile air is being exhausted from port B (See Drawing 1) When the pressurized air is not applied to Port A, the air pressure loss.  The compressed springs extend and forces the pistons inward.  As the springs extend, it rotate the actuator and the pinion turns clockwise which closes the valve.  (See Drawing 2) Pneumatic Air Actuator Dimension & Mounting Connection:   WIC Valve Air Actuator Accessory:  WIC Valve 4V310N-1/4-D Series directional control Namur actuator mount pilot air solenoid valve works with PVS series air actuator.  4V310N-1/4-D can be mounted directly onto the PVS Series air actuator.  4V310N-1/4-D comes with 5 different coil voltage options.  To add this valve, please click the Add 4V310N-1/4-D Pilot Solenoid Valve box, then choose the desire coil voltage from the select box. 4V310N Series Solenoid Valve Specification: Model Number: 4V310N-1/4-D Valve Type: 4 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported, Air Actuator Mount For Use With: PVS Series Air Actuated Ball Valve Flow Rate: 1.68 Cv (80 SCFM at 100 PSI) Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 3.7W / AC: 3.2VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 1/4″ Inch NPT Female Port Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Mounting Hardware: 2 Socket Head Screw and Washer Included Lubrication: Not Required   4V310N Series Installation Guide: 1. Connect the source to port P. 2. Connect the first outlet to port A. 3. Connect the first exhaust to port R. 4. Connect the second outlet to port B. 5. Connect the second exhaust to port S.   4V310N Series Namur Mount Valve Dimensions (Unit=mm):
