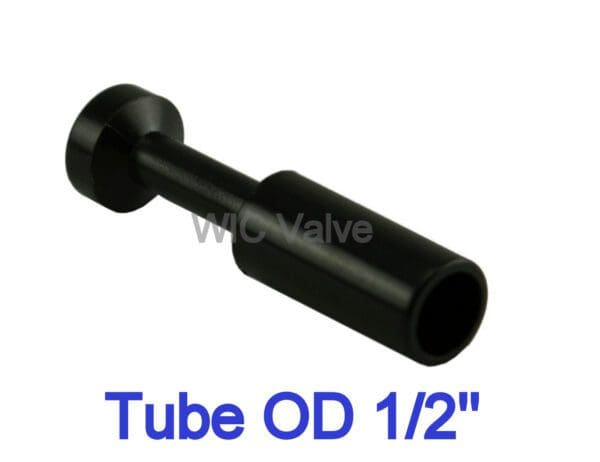

Plug Connector Tube OD 1/2″ Inch Plug In Tube Fitting

Description Composite Plug Connector Push In To Connect Fitting Tube OD 1/2″ Inch WIC Valve PPG Series plug connector composite push in to connect fitting provides a easy and quick tubing connections with no special tools required. High quality, easy to install.   PPG Series Plug Connector Specifications Operating Pressure 0 – 150 PSI 0 – 990 kpa Vacuum 0 – 29.5 in Hg 750 mm Hg Operating Temperature 0 – 60 °C 32 to 140°F Application Air Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.   Material of Construction  Plastic Body PBT (Polybutylene terephthalate)     How to install the tubing into fitting? Fitting Installation and Removal Guide: To install the tubing into fitting 1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs. 2) Simply push tubing past the O-ring to the internal tube dead stop by hand. 3) Pull the tubing back gently to ensure it is secure for leakproof connections.   To remove the tubing from fitting 1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position 2) Pull the tubing to slide out.   Tubing Size Tolerance Requirements: Polyurethane Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.) Polyethylene Tubing: specified fitting size ± 0.006” max. (± 0.15 mm max.) Polypropylene Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.) Nylon Tubing: specified fitting size ± 0.004” max. (± 0.1 mm max.)
