1/4″ Normally Open High Pressure 215 PSI Solenoid Valve Orifice 2.5mm

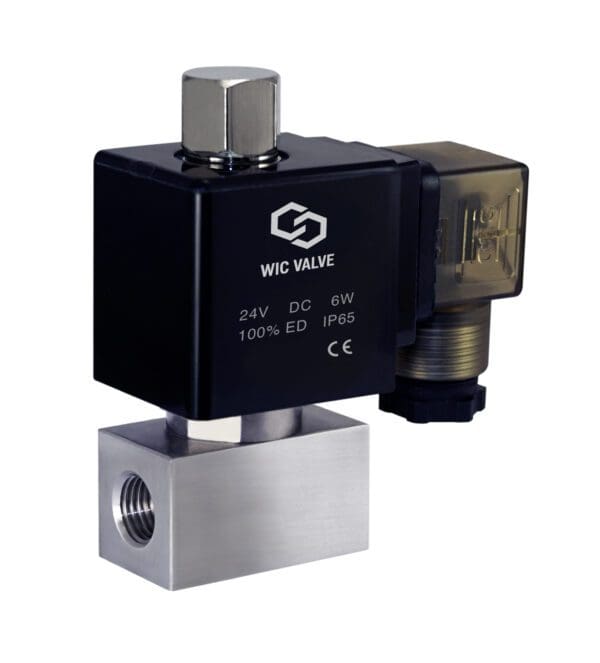

Description 1/4″ Normally Open High Pressure Stainless Steel Zero Differential Electric Solenoid Process Valve Teflon PTFE Seal    WIC Valve 2SOE Series 2-way normally open high pressure solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This industrial fast response process solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2SOE series electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  2SOE series 1/4″ valve is a zero differential valve which can be operated at 0 PSI, no minimum pressure is required.  2SOE Series high pressure solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized.  This compact high pressure electric process valve features with 2 of the M4 size convenient mounting holes, valve can be mounted in any position.   2SOE Series Stainless Steel High Pressure Normally Open Electric Solenoid Process Valve Specification: Valve Type: 2 Way Normally Open  (Valve closes with energized) Model Number: 2SOE-1/4-D-L-2.5 Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Body Material: 304 Stainless Steel Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification DC Coil Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 – 215 PSI Operating Temperature: -20 to 80 °C Port Size: 1/4″ Inch NPT Female Port Coil Voltage Option: 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator   2SOE Series Normally Open High Pressure Stainless Zero Differential Solenoid Valve Dimensions (Unit=mm) Model # Port Size (NPT) Flow Rate (Cv) Orifice Size (mm) 2SOE-1/4-D-L-2.5 1/4″ 0.20 2.5mm
