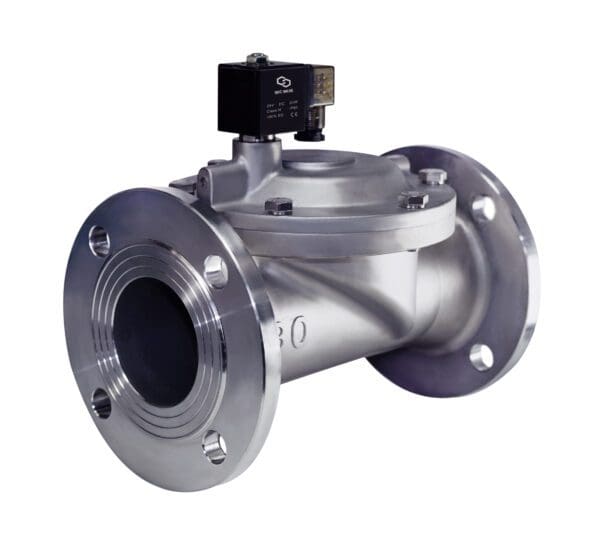

3″ Inch Electric Solenoid Flange Process Valve Normally Closed

Description 3″ Inch Stainless Steel Electric Solenoid Process Valve Flange Connection Normally Closed    WIC Valve 2SCD Series 2-way normally closed electric solenoid valve is to control On/Off of air, inert gas, liquid and water. This industrial stainless steel electric solenoid valve has one 3″ flange connection inlet and one 3″ flange connection outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.   2SCD Series 3″ Inch Electric Solenoid Valve Specification: Model Number: 2SCD-3-D-V-F Valve Type: 2 Way Normally Closed (Valve Opens with energized) Service Media: Air, Gas, Liquid, Water (≤ 20CST) Operation Model: Pilot Piston Flow Model: Uni-Directional Body Material: Stainless Steel Seal Material: Viton Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W / AC: 50Hz 28VA ; 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: DC: 5 – 115 PSI / AC: 5 – 170 PSI Operating Temperature:  -15 to 120 °C (5 to 248 °F) Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator     2SCD Series Electric Solenoid Valve Flange Connection Dimensions: Model Number Port Size  Flow Rate (Cv) Orifice Size (mm) 2SCD-2 1/2-D-V-F 2.5  Inch 52 65 2SCD-3-D-V-F 3 Inch 82 80 2SCD-4-D-V-F 4 Inch 128.4 100   Flange Connection Dimensions: Model D (mm) D1 (mm) D2 (mm) 2SCD-1 1/2-D-F 150 110 4 – Ø 18 2SCD-2-D-F 165 125 4 – Ø 18 2SCD-2 1/2-D-F 185 145 4 – Ø 18 2SCD-3-D-F 200 160 8 – Ø 18 2SCD-4-D-F 220 180 8 – Ø 18 2SCD-5-D-F 250 210 8 – Ø 18 2SCD-6-D-F 285 240 8 – Ø 18 2SCD-8-D-F 340 295 12 – Ø 18
