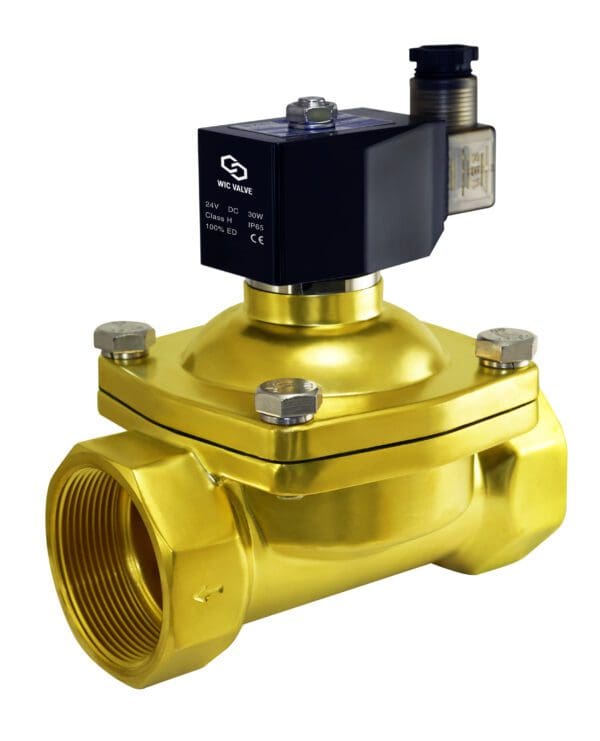

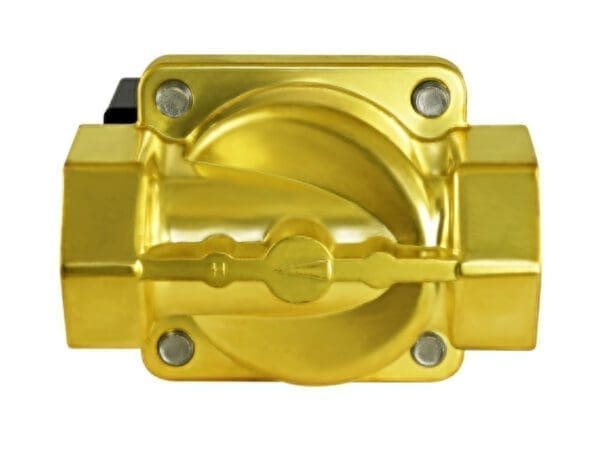

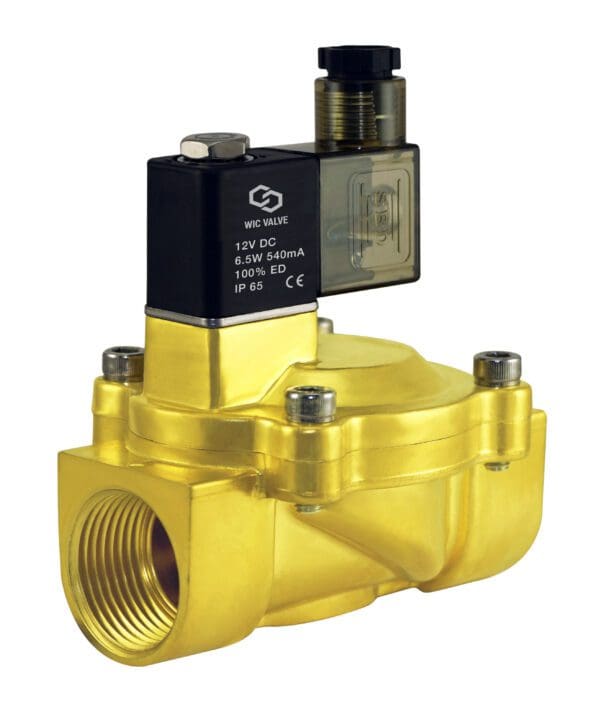

1″ Inch Low Power Consumption Brass Electric Solenoid Valve
$35.56
$57.61
Description 1″ Inch Low Power Consumption Brass Electric Solenoid Process Valve Normally Closed WIC Valve 2BCV Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid and water. This low power consumption electric solenoid valve has one 1″ inch NPT inlet and one 1″ inch NPT outlet port. Valve stays close when the coil is de-energize, and it opens when energized. 2BCV Series electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized and valve can be mounted in any position. 2BCV Series Low Power Consumption Electric Solenoid Process Valve Specification: Model Number: 2BCV-1-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Lift Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Power: DC: 6 – 6.5W; AC: 6 – 8.5VA Coil Class: F Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 5 to 115 PSI Operating Temperature: -10 to 80°C Port Size Option: 1″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650B Connector with LED Indicator 2BCV Series Low Power Consumption Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2BCV-3/8-D 3/8″ 4.8 13 48 88 100 72 2BCV-1/2-D 1/2″ 4.8 13 48 88 100 72 2BCV-3/4-D 3/4″ 20 25 70 95 105 100 2BCV-1-D 1″ 20 25 70 95 105 100 2BCV Series Power Save Electric Solenoid Valve Component Drawing:
