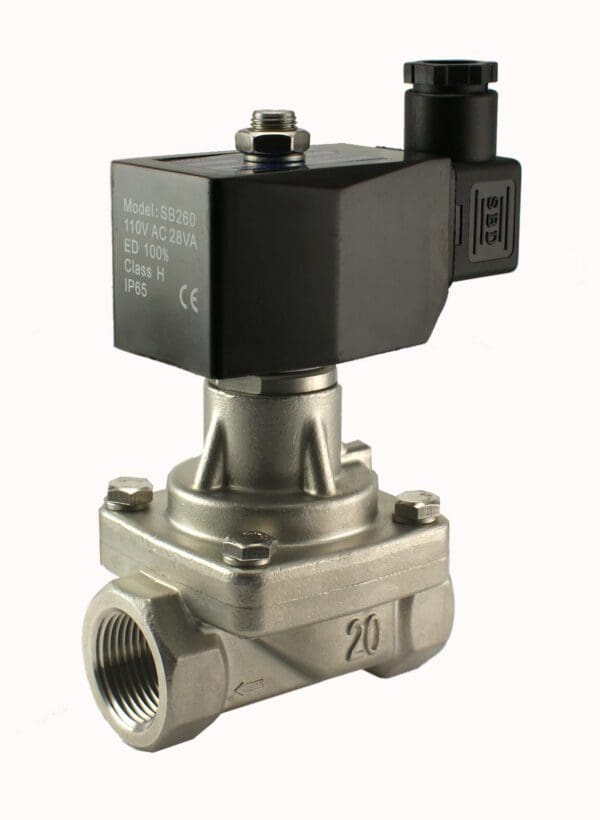

3/4″ Inch Zero Differential Electric Solenoid Steam Valve NC

Description 3/4″ Inch Stainless Steel Electric Solenoid Steam Valve Teflon PTFE Seal Normally Closed   WIC Valve 2SCL series 2-way normally closed electric solenoid steam valve is to control On/Off of air, inert gas, liquid, hot water and steam. This industrial steam solenoid valve has one 3/4″ inch NPT inlet and one 3/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2SCL series stainless steel steam solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.  2SCL series steam solenoid valve can be operated at 0 PSI, no minimum pressure is required.   2SCL Series Zero Differential Electric Solenoid Steam Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Hot Water, Steam Operation Model: Direct Lift Piston Body Material: 304 Stainless Steel Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC: 30W / AC: 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 PSI to 120 PSI Operating Temperature: Media: -5 to 180°C ; Ambient -5 to 45 °C Port Size: 3/4″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator   2SCL Series Stainless Steel Zero Differential Steam Valve Dimensions (Unit=mm):  Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C D 2SCL-1/2-D 1/2″ 4.8 15 56 107 122 67 2SCL-3/4-D 3/4″ 8.5 20 60 123 140 80 2SCL-1-D 1″ 14 25 72 129 151 92 2SCL-1 1/4-D 1-1/4″ 20 32 75 149 175 96 2SCL-1 1/2-D 1-1/2″ 31 40 93 153 183 118 2SCL-2-D 2″ 51 50 116 167 202 150   2SCL Series Stainless Steel Normally Closed Zero Differential Steam Solenoid Valve Component Drawing: Valve Frequently Asked Questions: How to connect DIN connector with wire? 1. Remove the Philip screw from the plastic housing protector. 2. Unplug the plastic housing from the DIN coil. 3. Remove the terminal block from the plastic housing. 4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.   What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
