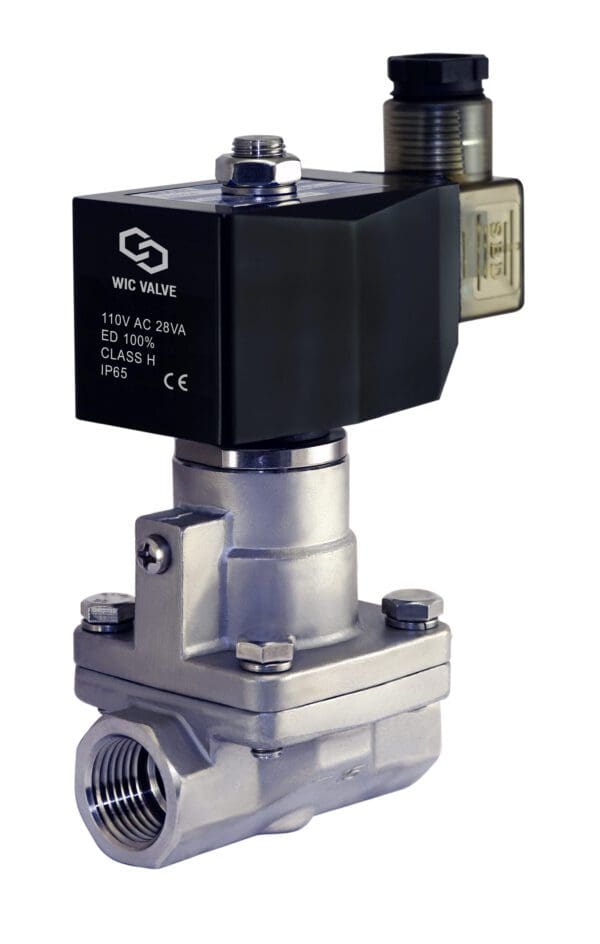

3/8″ High Pressure Electric Steam Process Valve Teflon Seal
$65.21
$123.9
Description 3/8″ Inch High Pressure Stainless Steel Electric Solenoid Steam Process Valve Normally Closed Teflon PTFE Seal WIC Valve 2SCM Series 2-way normally closed high pressure electric solenoid process valve is to control On/Off of air, inert gas, liquid, hot water, and steam. This industrial solenoid steam valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position. 2SCM Series high pressure pilot piston steam valve requires minimum of 7 PSI to operate and maximum pressure up to 230PSI. This steam solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized. 2SCM Series High Pressure Electric Solenoid Process Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Hot Water, Steam Operation Model: Pilot Piston Flow Model: Uni-Directional Body Material: 304 Stainless Steel Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC -30W ; AC – 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 7 to 230 PSI Operating Temperature: -20 to 180 °C Port Size: 3/8″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator 2SCM Series Stainless Steel High Pressure Steam Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2SCM-3/8-D 3/8″ 4.8 15 53 122 135 70 2SCM-1/2-D 1/2″ 4.8 15 53 122 135 70 2SCM-3/4-D 3/4″ 7.6 20 57 126 142 75 2SCM-1-D 1″ 12 25 69 130 152 94 2SCM-1 1/4-D 1-1/4″ 24 32 85 139 163 110 2SCM-1 1/2-D 1-1/2″ 29 40 90 140 170 122 2SCM-2-D 2″ 48 50 117 153 175 165 2SCM Series Stainless Steel Electric High Pressure Steam Solenoid Valve Component Drawing:
