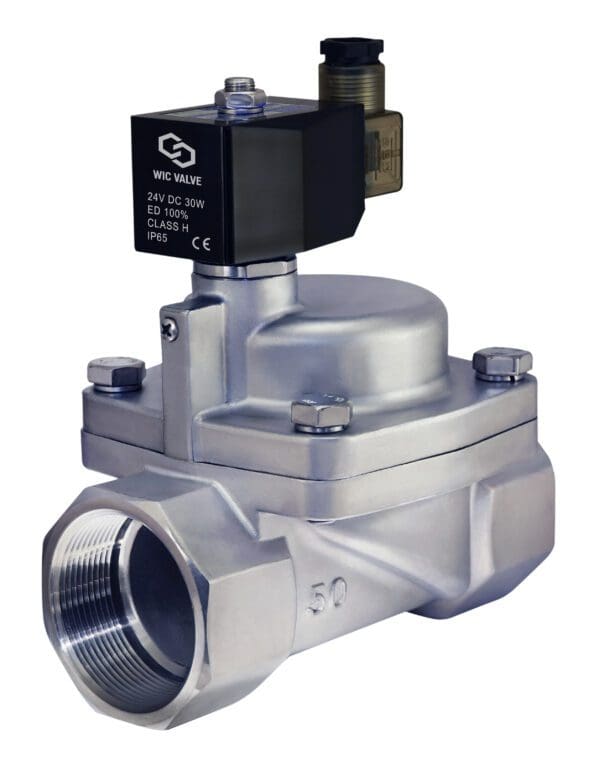

1.25″ Inch High Pressure Electric Steam Solenoid Process Valve NC
$44.91
$81.29
Description 1.25″ Inch High Pressure Stainless Steel Electric Steam Solenoid Valve Normally Closed Teflon PTFE Seal WIC Valve 2SCM Series 2-way normally closed solenoid process valve is to control On/Off of air, inert gas, liquid, hot water, and steam. This industrial steam solenoid valve has 1.25″ inch NPT one 1.25″ inch NPT inlet and one outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position. 2SCM Series high pressure steam valve requires minimum of 7 PSI to operate and maximum pressure up to 230PSI. This steam solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service for constantly energized. 2SCM Series High Pressure Electric Steam Solenoid Valve Specification: Model Number: 2SCM-1 1/4-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Hot Water, Steam Operation Model: Pilot Piston Flow Model: Uni-Directional Body Material: 304 Stainless Steel Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC: 30W / AC: 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 7 to 230 PSI Operating Temperature: -20 to 180 °C Port Size: 1.25″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator 2SCM Series Stainless High Pressure Electric Steam Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2SCM-3/8-D 3/8″ 4.8 15 53 122 135 70 2SCM-1/2-D 1/2″ 4.8 15 53 122 135 70 2SCM-3/4-D 3/4″ 7.6 20 57 126 142 75 2SCM-1-D 1″ 12 25 69 130 152 94 2SCM-1 1/4-D 1-1/4″ 24 32 85 139 163 110 2SCM-1 1/2-D 1-1/2″ 29 40 90 140 170 122 2SCM-2-D 2″ 48 50 117 153 175 165 2SCM Series Stainless Steel Electric High Pressure Steam Solenoid Valve Component Drawing:
