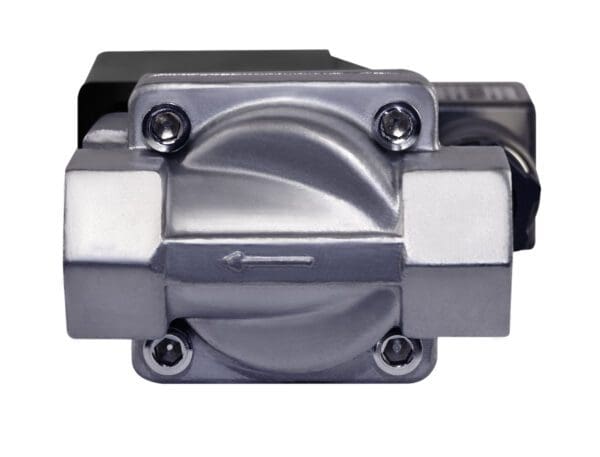

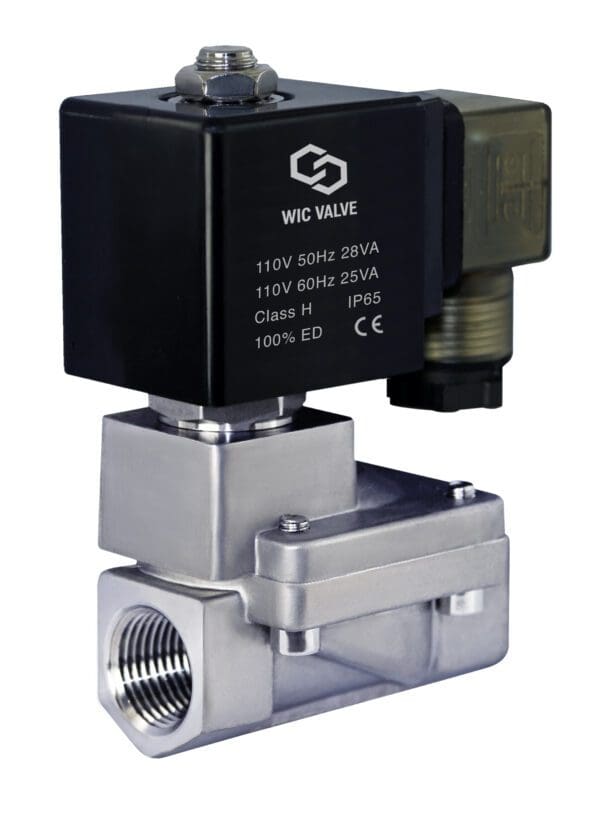

1.5″ Inch S316 Stainless High Pressure Electric Water Process Valve
$68.24
$124.2
Description 1.5” Inch High Pressure General Purpose SS316 Electric Solenoid Process Valve Normally Closed WIC Valve 2SCR Series 2-way normally closed general purpose process solenoid valve is to control On/Off of air, inert gas, liquid. This industrial solenoid valve has one 1.5″ inch NPT inlet and one 1.5″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCR Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. Valve can be mounted in any position. 2SCR Series S316 High Pressure Electric Solenoid Process Valve Specification: Model Number: 2SCR-1 1/2-D-V Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Diaphragm Flow Model: Uni-Directional Body Material: SS316 Stainless Steel Seal Material: Viton Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Insulation Class: H Class Ingress Protection: IP65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 4.5 PSI to 230 PSI Operating Temperature: -15 to 120 °C (5 to 248 °F) Port Size: 1.5″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator 2SCR Series S316 High Pressure Normally Closed Electric Process Valve Dimensions (Unit=mm) Model # Port Size (NPT) Flow Rate (Cv) Orifice Size A B C D Weight (lbs) 2SCR-3/8-D-V 3/8″ 4.5 13 48 66 97 112 2 2SCR-1/2-D-V 1/2″ 4.5 13 48 66 97 112 2 2SCR-3/4-D-V 3/4″ 7.6 20 58 75 100 118 2.3 2SCR-1-D-V 1″ 12 25 69 96 101 125 3.5 2SCR-1 1/4-D-V 1-1/4″ 24 32 96 131 120 150 7.2 2SCR-1 1/2-D-V 1-1/2″ 30 40 96 131 120 150 7.2 2SCR-2-D-V 2″ 48 50 120 165 130 165 9.5 2SCR Series Normally Closed High Pressure Electric Solenoid Valve Component Drawing:
