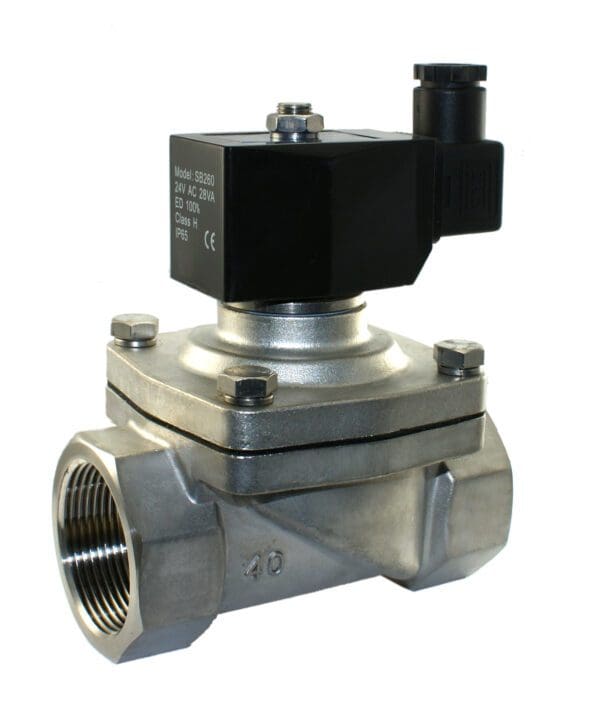

1.5″ Inch Stainless Zero Pressure Electric Solenoid Valve

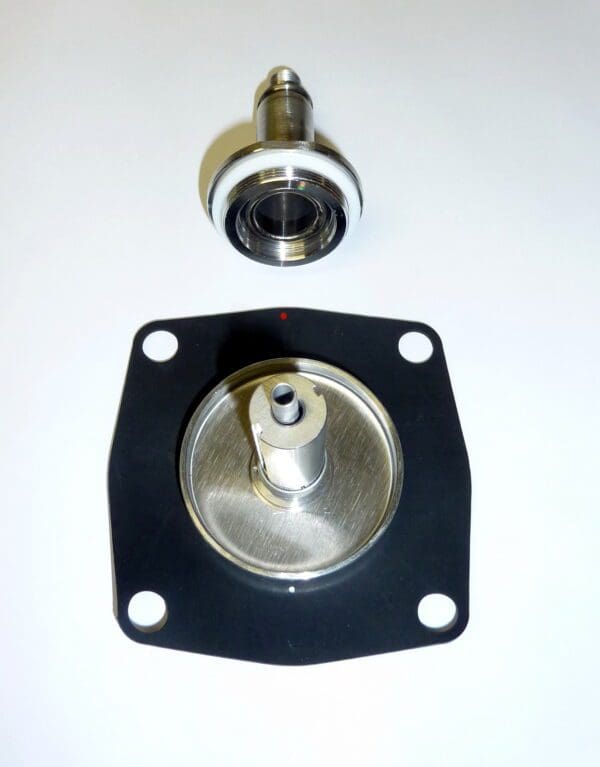

Description 1.5″ Inch Stainless Steel Zero Differential Electric Solenoid Valve Viton Seal Normally Closed    WIC Valve 2SCW series 2-way normally closed stainless steel electric solenoid process valve is to control On/Off of air, inert gas, liquid and vacuum. This industrial zero differential electric solenoid valve has one 1.5″ inch NPT inlet and one 1.5″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCW Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  2SCW Series solenoid valve is a zero differential valve which can be operated at 0 PSI (Vacuum) and it can be mounted in any position.   2SCW Series Stainless Steel Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Vacuum, Water Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: Stainless Steel Seal Material: Viton on Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring& Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC: 30W / AC: 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum to 150 PSI – AC Coil / Vacuum to 100 PSI – DC Coil Operating Temperature: -15 to 120 °C (5 to 248 °F) Port Size: 1.5″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA Low Power Coil Certification: CE Certification DC Coil Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator   2SCW Series Stainless Electric Solenoid Water Valve Dimensions (Unit=mm): Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C D Weight (lbs) 2SCW-3/8-D-V 3/8″ 4.8 16 56 104 117 68 1.8 2SCW-1/2-D-V 1/2″ 4.8 16 56 104 117 68 1.8 2SCW-3/4-D-V 3/4″ 7.6 20 56 106 123 73 1.8 2SCW-1-D-V 1″ 12 25 74 114 135 100 3.2 2SCW-1 1/4-D-V 1-1/4″ 24 35 85 129 154 110 5.7 2SCW-1 1/2-D-V 1-1/2″ 29 40 90 134 162 120 5.7 2SCW-2-D-V 2″ 48 50 115 151 185 155 9.9   2SCW Series Stainless Steel Electric Solenoid Valve Component Drawing:   DIN 43650A Connector Components:    How to connect DIN connector with wire?   To connect the wire to DIN connector is simple and easy, shown below is the 4 easy steps: 1. Remove the Philip screw from the plastic housing protector. 2. Unplug the plastic housing from the DIN coil. 3. Remove the terminal block from the plastic housing.  Use the Philip screw to push the terminal block out from the plastic housing. 4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.   What is the advantages to use DIN Connector? Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2SCW series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.   What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energised.
