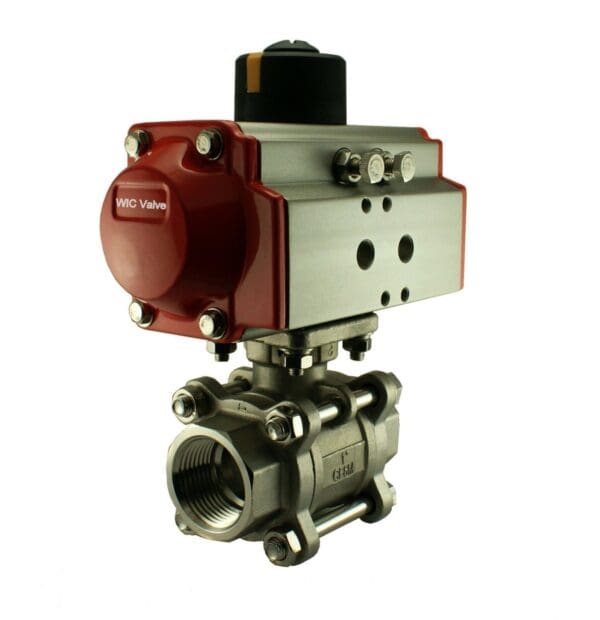

1.5″ Inch Pneumatic Double Acting Air Actuated Ball Valve

Description 1.5″ Inch Air Actuated Stainless Steel Ball Valve Pneumatic Double Acting (Air Return)   WIC Valve PVD series 1-1/2″ NPT pneumatic air actuated valve equipped with a stainless steel 3-piece ball valve, it allows a easy installation.  PVD series double acting air actuated valve use pressurized air to open and close the ball valve. The characteristic of the air actuated ball valve is that it has high flow rate, the full port straight through ball valve allows the service media such as air, gas, liquid, steam and water flow through directly without reducing the flow speed.  The 316 stainless steel ball valve comes with Teflon seal which can be used at a high operating temperature and pressure applications.  Ideal for the hazardous environments.   PVD Series Air Actuator Specification: Model Number: PVD-1 1/2-T Valve Type: 2 Way Service Media: Air, Gas, Liquid, Water, Steam Operation Model: Air Actuated Double Acting (Use Air Pressure to Open and Air Pressure to Close) Actuator Operating pressure: 100 PSI Standard Actuator Operating Pressure Range: 45 – 120 PSI Body Material: 316 Stainless Steel / CF8M Seal Material: Teflon (PTFE) Operating Pressure: 0 to 1000 PSI at 100 °F Operating Temperature: -51 to 230°C (-60 to 450°F) Port Size: 1-1/2″ NPT Female Port Installation Hardware: 2 Pieces Tube OD 1/4″ X Thread 1/8″ Male Straight Connector Fittings Included   Pneumatic Air Actuator Specifications: Pneumatic Actuator Specifications Actuator Standard ISO 5211, NAMUR, DIN 3337 Operating Pressure Range Min: 45 PSI – Max:120 PSI Operating Media Pressurized Filter Air Operating Temperature –20 to 80°C   3 Pieces Stainless Steel Ball Valve Specification: Ball Valve Material: S316 Stainless Steel Operating Pressure: 1000 PSI @ 100°F WOG Operating Temperature: -60 to 450°F Port Style: Full Port Port Connection: FNPT (Option: Tri-Clamp, Flange) Mounting Standard: ISO 5211, DIN 3203-M3     Ball Valve Parts and Materials Part Name  Material  Quantity Ball SS 316 1 Body Connector SS 316 / CF8M 1 Body Connector Bolt SS 304 4 Body Connector Nut SS 304 4 Body Connector Washer SS 304 4 CAP SS 316 1 Gland Nut SS 304 1 Joint Gasket PTFE 1 Seat PTFE 2 Stem SS 316 1 Stem Nut SS 304 1 Stem Packing PTFE 1 Stem Washer SS 304 1 Thrust Washer PTFE 1   Double Acting Air Return Air Actuator Structure: 1. Indicator: Position indicator with NAMUR mounting standard. 2. Pinion: High precision piston is made by nickeled alloy steel.  Fully conform with ISO5211, DIN3337 and Namur. 3. Actuator Body: Extruded aluminum alloy ASTM6005 body. 4. O-Rings: High quality NBR (Buna-N) 5. Pistons: Die-casting aluminum twin rack pistons are treated with hard anodized.  Symmetric mounting position that ensure a fast operation and long cycle life. 6. Travel Adjustment bolts: Two independent external travel adjustment bolts allow ±5° adjustment for both open and close directions. 7. End Caps: Die-casting aluminum powder polyester. 8. Bearing & Guides: Made by low friction compound material to minimize the direct contact between metals.   PVD Series Double Acting Air Actuator Operating Principle: Pressurized air is introduced to Port A that forces the pistons outward.  It causes the pinion to turn counterclockwise while the air is being exhausted from Port B (See Drawing 1) Pressurized air is introduced to Port B that forces the pistons inward.  It causes the pinion to turn clockwise while the air is being exhausted from Port A (See Drawing 2) PVD Series Double Acting Air Actuator Dimensions (Unit=mm) WIC Valve PVD Series Air Actuator Accessory:  WIC Valve 4V310N-1/4-D Series directional control Namur actuator mount pilot air solenoid valve works with PVD series air actuator.  4V310N-1/4-D can be mounted directly onto the PVD Series air actuator.  4V310N-1/4-D comes with 5 different coil voltage options.  To order this valve, please check the Add 4V310N-1/4-D Pilot Solenoid Valve box, then choose the desire coil voltage from the select box. 4V310N Series Solenoid Valve Specification: Model Number: 4V310N-1/4-D Valve Type: 4 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported, Air Actuator Mount For Use With: PVD Series Air Actuated Ball Valve Flow Rate: 1.68 Cv (80 SCFM at 100 PSI) Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 3.7W / AC: 3.2VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 1/4″ Inch NPT Female Port Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Mounting Hardware: 2 Socket Head Screw and Washer Included Lubrication: Not Required   4V310N Series Installation Guide: 1. Connect the source to port P. 2. Connect the first outlet to port A. 3. Connect the first exhaust to port R. 4. Connect the second outlet to port B. 5. Connect the second exhaust to port S.   4V310N Series Namur Mount Valve Dimensions (Unit=mm):
