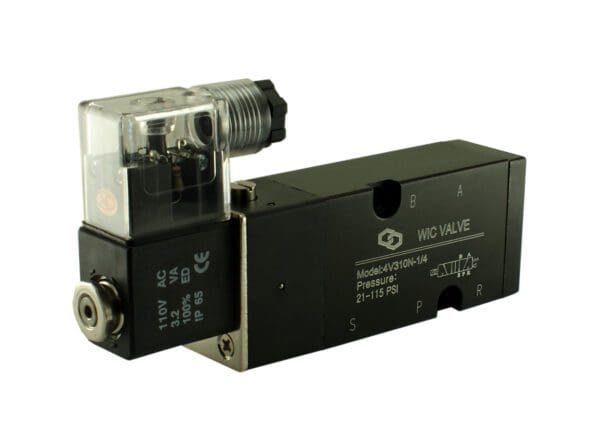

1/4″ 4 Way Namur Mount Air Control Electric Solenoid Valve
$43.34
$52.88
Description 1/4″ Inch 4 Way 2 Position Electric Directional Control Namur Mount Air Electric Solenoid Valve 4V310N Series Electric Solenoid Valve Specification: Model Number: 4V310N-1/4-D Valve Type: 4 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported, Air Actuator Mount For Use With: PVD Series Air Actuated Ball Valve Flow Rate: 1.68 Cv (80 SCFM at 100 PSI) Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 3.7W / AC: 3.2VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 1/4″ Inch NPT Female Port Coil Voltage: 110/120V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Mounting Hardware: 2 Socket Head Screw and Washer Included Lubrication: Not Required 4V310N Series Installation Guide: 1. Connect the source to port P. 2. Connect the first outlet to port A. 3. Connect the first exhaust to port R. 4. Connect the second outlet to port B. 5. Connect the second exhaust to port S. 4V310N Series Namur Mount Valve Dimensions (Unit=mm):
