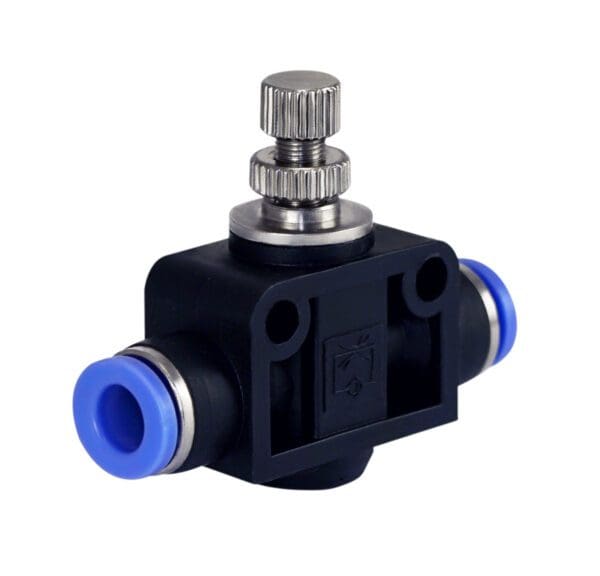

1/2″ Inch Pneumatic Inline Air Flow Speed Control Valve

Description Pneumatic Inline Air Flow Speed Control Valve 1/2″ Half Inch Tube OD Composite Push In Valve Fitting   WIC Valve PFV Series composite flow speed control valve one touch push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.  Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow. Yet the special adjustment needle design provides a high precision air flow adjustment.   Pneumatic Flow Control Valve Specifications Operating Pressure 0 – 150 PSI 0 – 990 kpa Vacuum 0 – 29.5 in Hg 750 mm Hg Operating Temperature 0 – 60 °C 32 to 140°F Application Air Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.   Air Flow Control Valve Material of Construction  Plastic Body PBT (Polybutylene terephthalate) Metal Body Nickel Plated Brass Release Button POM (Poly oxy methylene copolymer) Grip Ring Stainless Steel Thread Sealant Teflon O-ring NBR (Buna-N)   Schematic of Flow Control Valve Construction: Push In Fitting Installation and Removal Guide: How to install the tubing into fitting: 1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs. 2) Simply push tubing past the O-ring to the internal tube dead stop by hand. 3) Pull the tubing back gently to ensure it is secure for leakproof connections. How to remove the tubing from fitting: 1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position 2) Pull the tubing to slide out.
