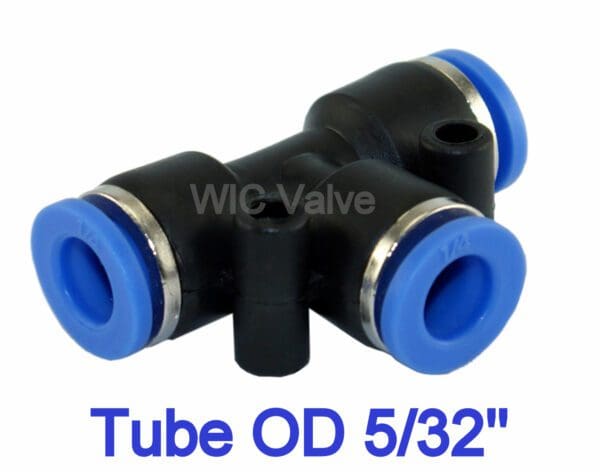

Tee Union Connector Tube OD 5/32″ One Touch Push In Fitting

Description WIC Valve PTU Series Composite Tee Union Connector Tube OD 5/32″ Quick Release One Touch Push In To Connect Fitting WIC Valve PTU Series Tee Union push in fitting equipped with a convenient one touch release button that provides a easy and quick tubing connections with no special tools required.  Our unique stainless collect design offers a secure connections that hold the tube firmly without restricting flow.   Tee Union Fitting Specifications Operating Pressure 0 – 150 PSI 0 – 990 kpa Vacuum 0 – 29.5 in Hg 750 mm Hg Operating Temperature 0 – 60 °C 32 to 140°F Elbows Swivel (rotate 360°) Application Air Recommended Tubing Material Polyurethane, Nylon, Polyethylene, Polypropylene.   Material of Construction  Plastic Body PBT (Polybutylene terephthalate) Metal Body Nickel Plated Brass Release Button POM (Poly oxy methylene copolymer) Grip Ring Stainless Steel Thread Sealant Teflon O-ring NBR (Buna-N)   Schematic of Composite Push In Fitting Construction: PTU Series Tee Union Connector Part No. Tube OD (Inch) PTU-T1/8 1/8″ PTU-T5/32 5/32″ PTU-T3/16 3/16″ PTU-T1/4 1/4″ PTU-T5/16 5/16″ PTU-T3/8 3/8″ PTU-T1/2 1/2″   Fitting Installation and Removal Guide: To install the tubing into fitting 1) Cut the tubing square ensure the outside diameter is free of score marks and no burrs. 2) Simply push tubing past the O-ring to the internal tube dead stop by hand. 3) Pull the tubing back gently to ensure it is secure for leakproof connections.   To remove the tubing from fitting 1) Press evenly on both sides of the release button against fitting body, keep the release button (collet) depressed and held in this position 2) Pull the tubing to slide out.
