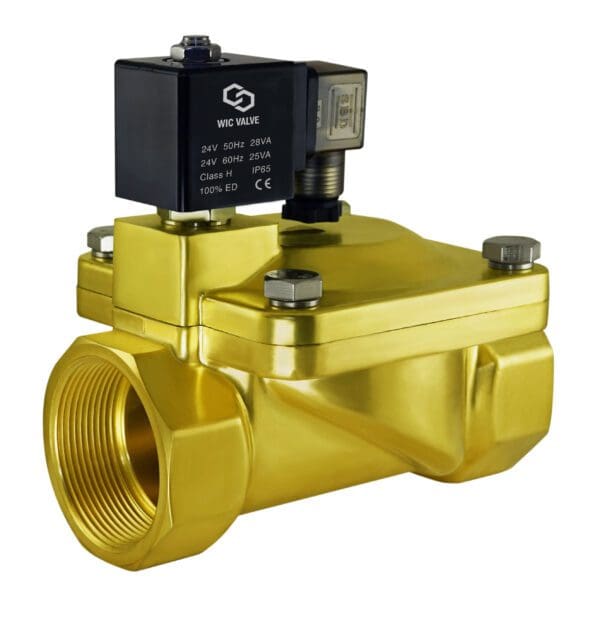

2″ Inch High Pressure 230 PSI Brass Electric Solenoid Valve NC

Description 2” Inch High Pressure General Purpose Brass Electric Solenoid Process Valve Normally Closed   WIC Valve 2BCR series 2-way normally closed general purpose process solenoid valve is to control On/Off of air, inert gas, liquid and water. This industrial solenoid valve has one 2″ inch NPT inlet and one 2″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCR series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.   2BCR Series High Pressure Electric Solenoid Process Valve Specification: Model Number: 2BCR-2-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Insulation Class: H Class Ingress Protection: IP65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 4.5 PSI to 230 PSI Operating Temperature: NBR -10 to 80 °C (14 to 176 °F) Port Size:  2″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator   2BCR Series High Pressure Normally Closed Electric Process Valve Dimensions (Unit=mm) Model # Port Size (NPT) Flow Rate (Cv) Orifice Size  A B C D Weight (lbs) 2BCR-3/8-D 3/8″ 4.5 13 48 66 97 112 2 2BCR-1/2-D 1/2″ 4.5 13 48 66 97 112 2 2BCR-3/4-D 3/4″ 7.6 20 58 75 100 118 2.3 2BCR-1-D 1″ 12 25 69 96 101 125 3.5 2BCR-1 1/4-D 1-1/4″ 24 32 96 131 120 150 7.2 2BCR-1 1/2-D 1-1/2″ 30 40 96 131 120 150 7.2 2BCR-2-D 2″ 48 50 120 165 130 165 9.5   2BCR Series Normally Closed High Pressure Electric Solenoid Valve Component Drawing: What is Coil with DIN Connector? Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2BCR series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.   What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
