1/4″ Inch Fast Response Direct Acting Electric Solenoid Valve

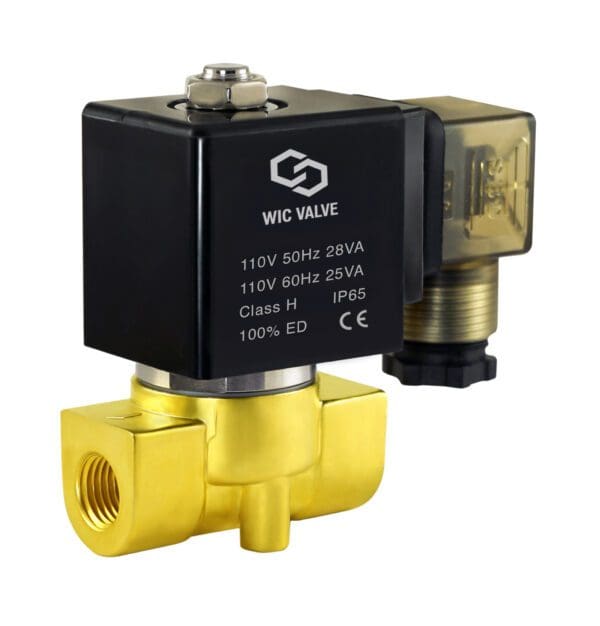

Description 1/4″ Inch Brass Fast Response Electric Solenoid Process Valve Normally Closed NBR Seal   2BCK series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This industrial fast response electric solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve has two holes in the bottom and can be mounted in any position.  2BCK series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  This compact electric process solenoid valve features with 2 of the M5 size convenient mounting holes for easy installation, valve can be mounted in any position.   2BCK Series Direct Acting Fast Response Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Model Number: 2BCK-1/4-D Service Media: Air, Gas, Liquid, Vacuum, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow) Response Time: Less than 20 ms Body Material: Brass Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Certification: CE Certification Coil Power:  DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum 0 to 150 PSI Operating Temperature: -10 to 80 °C Port Size: 1/4″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Coil Connector with LED Indicator   2BCK Series Normally Closed Brass Electric Solenoid Valve Dimensions (Unit=mm): Model # Port Size (NPT) Flow Rate (Cv) Orifice Size (mm) 2BCK-1/4-D 1/4″ 0.23 2 2BCK-3/8-D 3/8″ 0.6 4 Solenoid Valve Frequently Asked Questions: How to connect DIN 43650A connector with wire? To connect the wire to DIN connector is simple and easy, shown below is the 4 easy steps: 1. Remove the Philip screw from the plastic housing protector. 2. Unplug the plastic housing from the DIN coil. 3. Remove the terminal block from the plastic housing.  Use the Philip screw to push the terminal block out from the plastic housing. 4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required. What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.   What is IP65? Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides. The IP rating normally has two (or three) numbers: 1) Protection from solid objects or materials 2) Protection from liquids (water) 3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529) IP First number – Protection against solid objects 0 No special protection 1 Protected against solid objects over 50 mm, e.g. accidental touch by persons hands. 2 Protected against solid objects over 12 mm, e.g. persons fingers. 3 Protected against solid objects over 2.5 mm (tools and wires). 4 Protected against solid objects over 1 mm (tools, wires, and small wires). 5 Protected against dust limited ingress (no harmful deposit). 6 Totally protected against dust. IP Second number – Protection against liquids 0 No protection. 1 Protection against vertically falling drops of water e.g. condensation. 2 Protection against direct sprays of water up to 15o from the vertical. 3 Protected against direct sprays of water up to 60o from the vertical. 4 Protection against water sprayed from all directions – limited ingress permitted. 5 Protected against low pressure jets of water from all directions – limited ingress. 6 Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted. 7 Protected against the effect of immersion between 15 cm and 1 m. 8 Protects against long periods of immersion under pressure.
