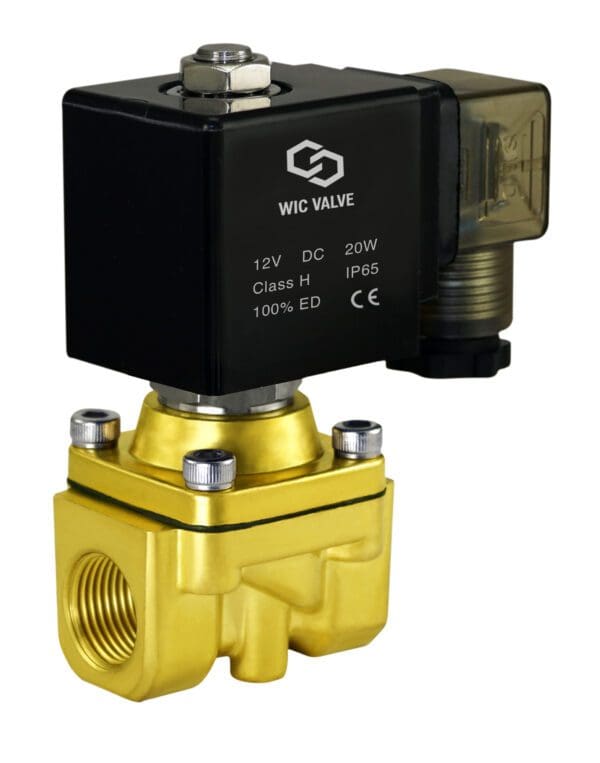

1/2″ Inch High Flow High Pressure 290 PSI Electric Valve

Description 1/2″ Inch High Pressure Brass Electric Solenoid Process Valve Normally Closed   WIC Valve 2BCA series 2-way normally closed general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid and oil. This industrial high pressure electric solenoid valve has one 1/2″ inch NPT inlet and one 1/2″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCA series high flow electric valve can be operated at 0 PSI, which no minimum pressure is require.  2BCA series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  2BCA series compact high flow electric process valve features with 2 of the M5 size convenient mounting holes and valve can be mounted in any position.   2BCA Series Normally Closed Electric Solenoid Process Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water, Light Oil Operation Model: Semi Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Coil Insulation Class: H Class Ingress Protection: IP65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 to 290 PSI with AC Coil; 0 PSI to 230 PSI with DC Coil Operating Temperature: NBR -10 to 80 °C (14 to 176 °F) Port Size: 1/2″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator   2BCA Series Brass High Flow Electric Solenoid Valve Dimensions (Unit=mm) Model # Port Size (NPT) Flow Rate (Cv) Orifice Size (mm) 2BCA-1/4-D 1/4″ 2.1 10 2BCA-3/8-D 3/8″ 2.1 10 2BCA-1/2-D 1/2″ 2.1 10
