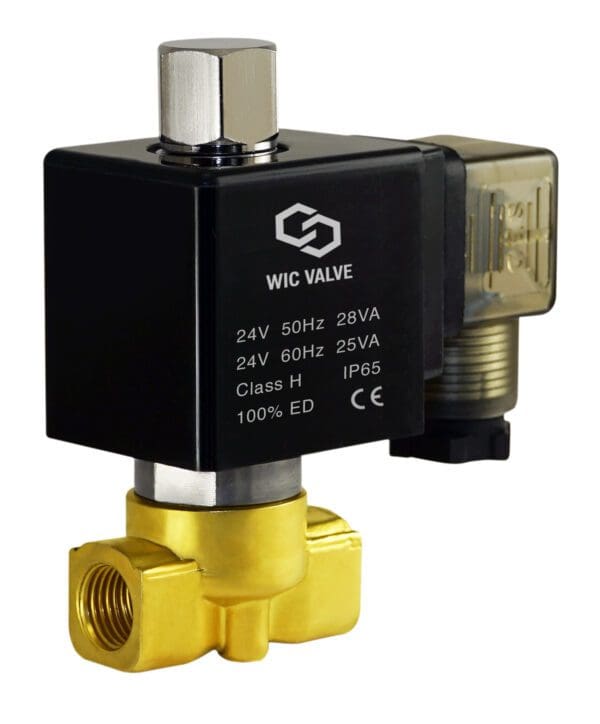

1/4″ Inch Normally Open Fast Response Electric Solenoid Valve

Description 1/4″ Inch Normally Open Brass Fast Response Zero Differential Electric Solenoid Process Valve NBR Seal   WIC Valve 2BOK Series 2-way normally open electric solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This industrial electric solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized. Valve has two holes in the bottom and can be mounted in any position.  2BOK Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  This compact fast response electric process valve features with 2 of the M5 size convenient mounting holes, valve can be mounted in any position.   2BOK Series Normally Open Direct Acting Electric Solenoid Process Valve Specification: Model Number: 2BOK-1/4-D Valve Type: 2 Way Normally Open (Valve closes with energized) Service Media: Air, Gas, Liquid, Vacuum, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.2Cv (Fluid Flow) Response Time: Less than 20 ms Body Material: Brass Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Certification: CE Certification Coil Power:  DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 to 85 PSI Operating Temperature: -10 to 80 °C Port Size: 1/4″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Coil Connector with LED Indicator   2BOK Series Normally Open Brass Electric Solenoid Valve Dimensions (Unit=mm): Model # Port Size (NPT) Flow Rate (Cv) Orifice Size (mm) Weight (lbs) 2BOK-1/8-D 1/8″ 0.12 2 1 2BOK-1/4-D 1/4″ 0.2 2.5 1
