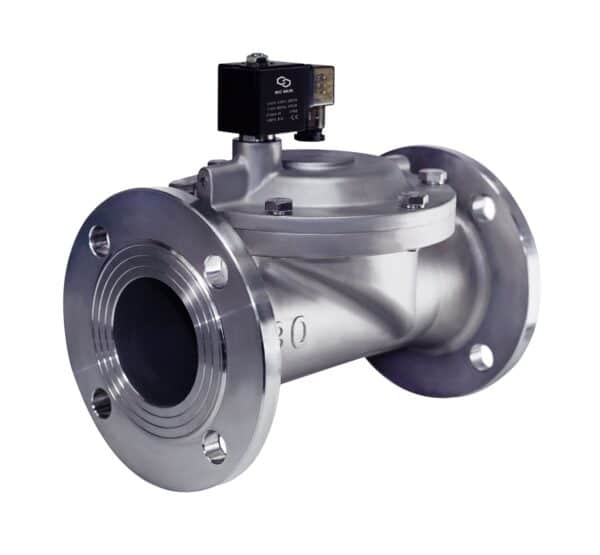

2.5″ Inch Electric Water Solenoid Flange Valve Normally Closed

Description 2.5″ Inch Electric Solenoid Valve Flange Connection Normally Closed    WIC Valve 2SCD-F Series 2-way normally closed solenoid valve is to control On/Off of air, inert gas, liquid, water. This industrial solenoid valve has one 2-1/2″ flange connection inlet and one 2-1/2″ flange connection outlet port. Valve stays close when the coil is de-energized, and it opens when energized. Valve can be mounted in any position.   2SCD-F Series Normally Closed Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve Opens with energized) Service Media: Air, Gas, Liquid, Water (≤ 20CST) Operation Model: Pilot Piston Flow Model: Uni-Directional Body Material: Stainless Steel Seal Material: Viton Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W / AC: 50Hz 28VA ; 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: DC: 5 – 115 PSI / AC: 5 – 170 PSI Operating Temperature:  -15 to 120 °C (5 to 248 °F) Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator   2SCD-F Series Normally Closed Solenoid Valve Flange Connection Dimensions: Model  2SCD-1 1/2-F 2SCD-2-F 2SCD-2 1/2-F 2SCD-3-F 2SCD-4-F 2SCD-5-F 2SCD-6-F 2SCD-8-F Orifice Size (mm) 40 50 65 80 100 125 150 200 CV 21 30 52 81.7 128.4 221.7 291.7 513.5 Dimensions L (mm) 182 215 260 277 350 425 450 560 H (mm) 196 200 280 287 330 437 460 547 H1 (mm) 125 120 185 190 230 310 318 380   Flange Connection Dimensions: Model D (mm) D1 (mm) D2 (mm) 2SCD-1 1/2-D-F 150 110 4 – Ø 18 2SCD-2-D-F 165 125 4 – Ø 18 2SCD-2 1/2-D-F 185 145 4 – Ø 18 2SCD-3-D-F 200 160 8 – Ø 18 2SCD-4-D-F 220 180 8 – Ø 18 2SCD-5-D-F 250 210 8 – Ø 18 2SCD-6-D-F 285 240 8 – Ø 18 2SCD-8-D-F 340 295 12 – Ø 18
