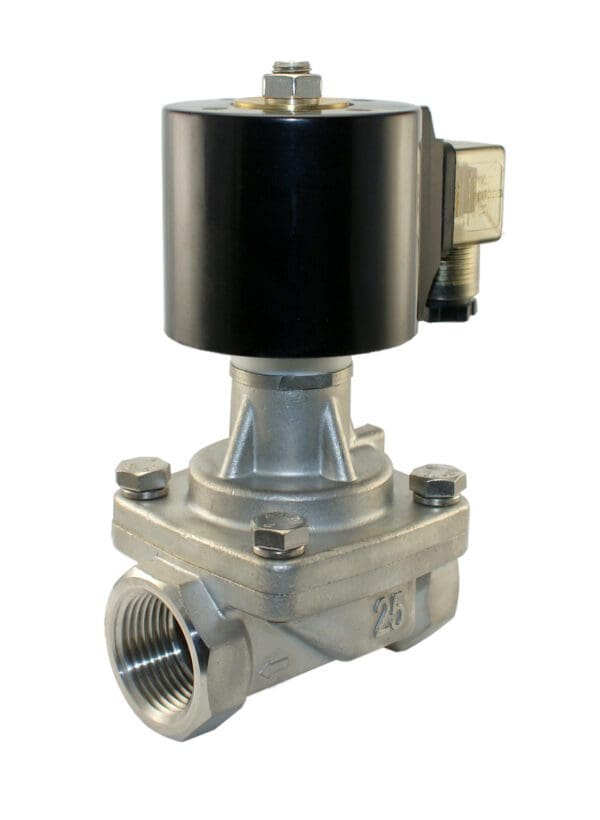

1″ Inch Electric Zero Differential Steam Solenoid Process Valve

Description 1″ Inch Stainless Steel Electric Solenoid Steam Process Valve Normally Closed   WIC Valve 2SCL series 2-way normally closed electric steam solenoid valve is to control On/Off of steam, liquid and hot water. This industrial electric solenoid steam solenoid valve has one 1″ inch NPT inlet and one 1″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2SCL series steam solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized and valve can be mounted in any position.  2SCL series steam solenoid valve can be operated at 0 PSI, no minimum pressure is required.   2SCL Series Electric Solenoid Steam Process Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Hot Water, Steam Operation Model: Direct Lift Piston Flow Model: Uni-Directional Body Material: 304 Stainless Steel Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC: 35W – 40W / AC: 30VA – 35VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 PSI to 120 PSI Operating Temperature: Media: -5 to 180°C ; Ambient -5 to 45 °C Port Size: 1″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Coil Connector with LED Indicator   2SCL Series Stainless Steel Zero Differential Steam Valve Dimensions (Unit=mm): Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C D 2SCL-1/2-D 1/2″ 4.8 15 56 107 122 67 2SCL-3/4-D 3/4″ 8.5 20 60 123 140 80 2SCL-1-D 1″ 14 25 72 129 151 92 2SCL-1 1/4-D 1-1/4″ 20 32 75 149 175 96 2SCL-1 1/2-D 1-1/2″ 31 40 93 153 183 118 2SCL-2-D 2″ 51 50 116 167 202 150   2SCL Series Stainless Zero Differential Steam Solenoid Valve Component Drawing:   Valve Frequently Asked Questions: What is the advantage of using DIN Connector? Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2SCL series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.   How to connect DIN connector with wire? 1. Remove the Philip screw from the plastic housing protector. 2. Unplug the plastic housing from the DIN coil. 3. Remove the terminal block from the plastic housing. 4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.   What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
