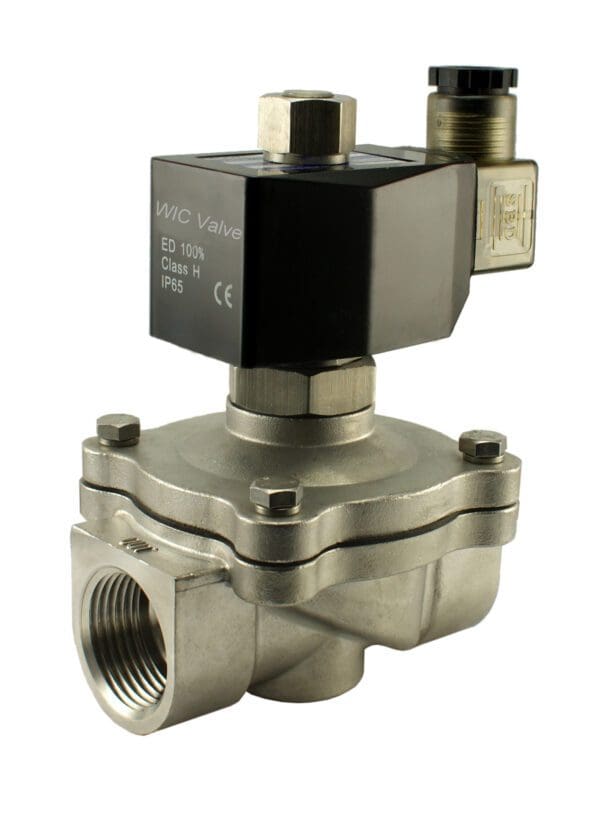

1″ Inch Normally Open Zero Differential Electric Solenoid Valve
$37.9
$45.48
Description 1″ Inch Normally Open Stainless Steel Electric Solenoid Zero Differential Process Valve WIC Valve 2SOW Series 2-way normally open general purpose solenoid process valve is to control On/Off of air, inert gas, liquid, water and vacuum. This industrial solenoid valve has one 1″ inch NPT inlet and one 1″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized. 2SOW Series solenoid valve is a zero differential solenoid valve, it can be operated at 0 PSI (Vacuum) and mounted at any position. This industrial stainless steel solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2SOW Series Zero Differential Normally Open Solenoid Valve Specification: Valve Type: 2 Way Normally Open (Valve closes with energized) Service Media: Air, Gas, Liquid, Vacuum, Water Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: Stainless Steel Valve Body Seal Material: Viton on Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 30W ; AC -50Hz 28VA / 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum 0 PSI to 90 PSI with AC Coil / Vacuum 0 PSI to 80 PSI with DC Coil Operating Temperature: Viton -15 to 120 °C Port Size: 1″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA Low Power Coil Certification: CE Certification DC Coil Operating Temperature: -15 to 80 °C (5 to 176 °F) with Low Power Consumption Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator 2SOW Series Normally Open Stainless Steel Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2SOW-3/8-D-V 3/8″ 4.8 16 56 118 131 68 2SOW-1/2-D-V 1/2″ 4.8 16 56 118 131 68 2SOW-3/4-D-V 3/4″ 7.6 20 56 123 140 73 2SOW-1-D-V 1″ 12 25 74 147 168 100 2SOW-1 1/4-D-V 1-1/4″ 24 35 85 160 185 110 2SOW-1 1/2-D-V 1-1/2″ 29 40 90 165 193 120 2SOW-2-D-V 2″ 48 50 115 176 210 155 2SOW Series Normally Open Stainless Steel Electric Solenoid Valve Component Drawing:
