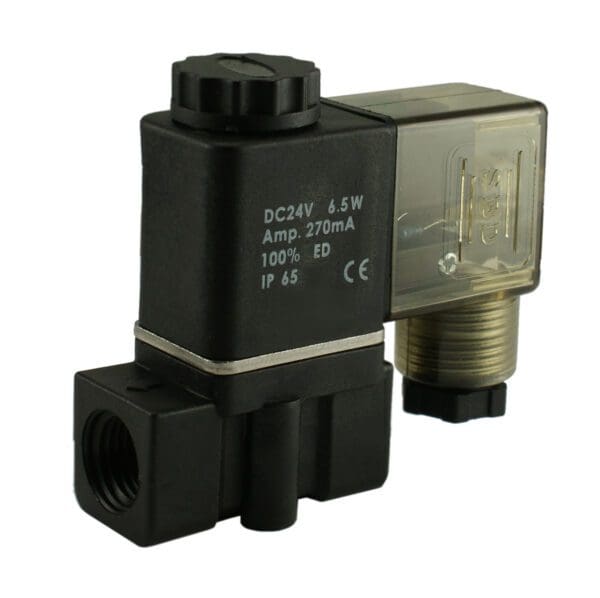

1/8 Inch Plastic Fast Response Electric Solenoid Valve DIN Connector
$18.7
$27.49
Description 1/8″ Inch Plastic Fast Response Zero Differential Electric Solenoid Valve With DIN Connector WIC Valve 2PCK series 2-way normally closed solenoid water valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one 1/8″ inch NPT inlet and one 1/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCK series solenoid valve is a zero differential valve which can be operated at 0PSI (Vacuum) and mounted in any position. 2PCK Series Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow) Response Time: Less than 20 ms Body Material: Engineered Nylon Plastic (PA66) Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC: 6-6.5W / AC: 6-6.5VA Coil Class: F Class IP 65 (CE Certification) Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 28″” Hg to 115 PSI Operating Temperature: -5 to 80 °C Port Size: 1/8″ Inch NPT Female Port Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: DIN Connector with LED Indicator 2PCK Series Normally Closed Zero Differential Plastic Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C 2PCK-1/8-D 1/8″ 0.23 2.5 41 62 25 2PCK-1/4-D 1/4″ 0.23 2.5 41 62 25 2PCK Series Direct Acting Zero Differential Plastic Solenoid Valve Component Drawing: Frequently Asked Questions: Grommet Coil Lead Wire Connections: For the DC Coil, connect one of the two wires to Positive and the other wire to Negative. For the AC Coil, connect one of the two wires to Hot wire and the other wire to Neutral wire.
