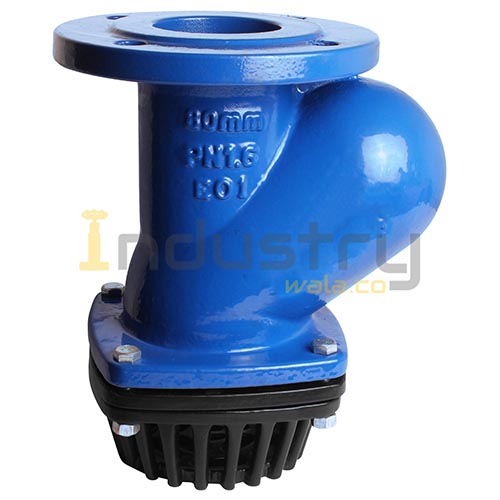

The Cast Iron Foot Valve Ball Type Flange End PN10 is a robust and reliable non-return valve designed to maintain pump priming and prevent backflow in suction lines. Built with high-quality cast iron and a ball-type mechanism, this valve ensures efficient fluid control, long service life, and leak-proof performance in industrial and water handling applications. The Cast Iron Foot Valve Ball Type is widely used in pumping systems where uninterrupted flow and protection against reverse flow are critical. Overview- The cast iron foot valve flange end is installed at the suction end of pipelines to prevent backflow and maintain the prime of pumps. It features a rubber-coated ball that moves freely inside the valve body to allow flow in one direction and automatically seals when flow stops. This design ensures smooth operation, minimal pressure drop, and reliable sealing under varying operating conditions. Working Principle The Cast Iron Foot Valve Ball Type operates on a simple and effective mechanism: When the pump starts, fluid flow lifts the ball, allowing liquid to pass through When the pump stops, the ball settles back onto the seat due to gravity and back pressure This creates a tight seal, preventing reverse flow and maintaining system prime This automatic operation ensures efficient pump performance and reduces downtime. Key Features: Ball-type design for reliable non-return operation Flange end connection for secure and leak-proof installation Reinforced rubber-coated ball for tight sealing Low pressure drop across the valve Full bore design for smooth and unrestricted flow Built-in strainer to prevent entry of debris Self-cleaning mechanism due to ball movement Maintenance-free and long service life Technical Specifications:- Product Type: Foot Valve Ball Type Material: Cast Iron (IS 210 / FG260 / GG25) Connection Type: Flange End Pressure Rating: PN10 Seat Material: Rubber / Nitrile Coated Ball Operation: Automatic (Non-return) Size Range: As per standard requirements Application: Water, wastewater, and industrial fluids Applications: The Cast Iron Foot Valve Ball Type Flange End PN10 is widely used in: Water pumping systems Irrigation and agriculture applications Industrial fluid handling Sewage and wastewater systems Borewell and sump installations Performance Benefits: Prevents backflow and protects pumps Maintains pump priming for efficient operation Reduces energy loss and pressure drop Ensures long-lasting and reliable performance Minimizes maintenance and operational downtime The Cast Iron Foot Valve Ball Type Flange End PN10 is an essential component for efficient and safe pumping systems. Its durable construction, automatic sealing mechanism, and reliable performance make it suitable for a wide range of industrial and water management applications. If you are looking to buy cast iron foot valve PN10, this cast iron foot valve flange end offers durability, efficiency, and dependable performance for long-term use. FAQs – FAQs for Cast Iron Foot Valve Ball Type Flange End PN10: 1. How does a CI Foot Valve help in preventing backflow in pumping systems?A CI foot valve ensures one-way flow by using a ball-type mechanism that stops water from returning to the pump, improving efficiency and preventing dry running. 2. Is a CI Foot Valve suitable for high-pressure applications like PN10 systems?Yes, a CI foot valve designed for PN10 rating can handle moderate pressure systems effectively, making it reliable for industrial and water supply applications. 3. How do I choose the right size CI Foot Valve for my pump?To select the correct CI foot valve, match the flange size, flow requirements, and pump capacity to ensure proper fit and smooth suction performance. 4. Can a CI Foot Valve operate efficiently in muddy or debris-filled water?A CI foot valve performs well in such conditions due to its ball-type design, which minimizes clogging and ensures consistent flow in challenging environments. SKU: 727b5275fcab Categories: Manual Valves, Other Manually Operated Valves Tags: ball foot valve, ball type foot valve, cast iron foot valve, ci foot valve, foot valve, normax, normax foot valve
