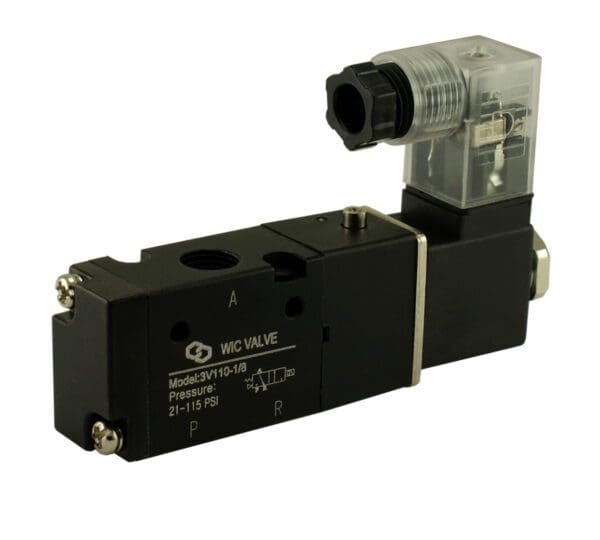

1/8″ Inch 3 Way Directional Control Air Electric Solenoid Valve
$26.8
$39.13
Description 1/8″ Inch 3 Way 2 Position Air Directional Control Electric Solenoid Valve WIC Valve 3V110 Series pneumatic in-line 3-way directional control electric solenoid valve is body ported spool valve. 3V110 Series solenoid valve is a 3 way, 2 position, single solenoid valve. This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid. 3V110 Series directional control valves is a body ported mounting type and valve can be surface mounted. 3V110 Series is equipped with a manual override button. 3V110 Series directional control valve is commonly use to operate linear motion control components such as single acting spring return air cylinder. 3V110 Series Air Directional Control Electric Solenoid Valve Specification: Valve Type: 3 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported Flow Rate: 0.67Cv (25 SCFM at 100 PSI) Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 2.8W / AC: 3VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 1/8″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Lubrication: Not Required Manifold Block Model: M3V-100 Series 3V110 Series Electric Solenoid Air Valve Installation Guide: 1. Connect the source to port P. 2. Connect the outlet to port A. 3. Connect the exhaust to port R. 3V110 Series Pneumatic Directional Control Air Solenoid Valve Dimensions (Unit=mm): DIN 43650 Form C Connector Dimensions (Unit=mm):
