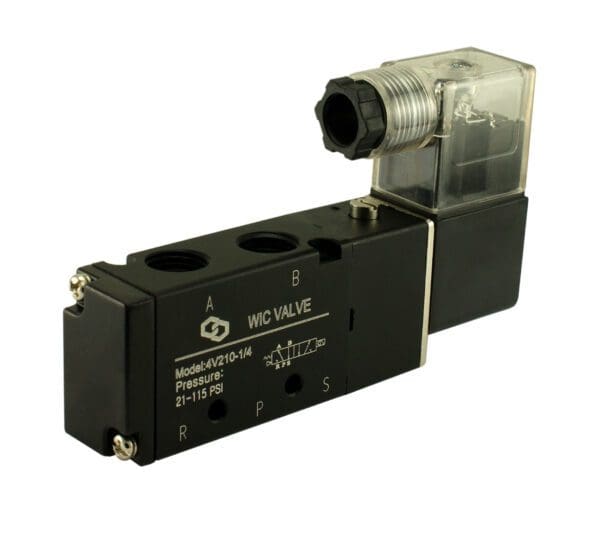

1/4″ 4 Way Inline Directional Control Electric Solenoid Valve
$28.63
$51.82
Description 1/4″ Inch 4 Way 2 Position Inline Air Directional Control Electric Solenoid Valve WIC Valve 4V210 Series pneumatic in-line directional control solenoid valve is body ported spool valve. 4V210 Series solenoid valve is a 4 way, 2 position, single solenoid valve. This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid. 4V210 Series directional control valves is a body ported mounting type and valve can be surface mounted. 4V210 Series is equipped with a manual override button. 4V210 Series directional control valve is commonly use to operate linear motion control components such as double acting air cylinder. 4V210 Series Air Directional Control Electric Solenoid Valve Specification: Valve Type: 4 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported Flow Rate: 0.89 Cv Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 3.7W / AC: 3.2VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 3 of 1/4″ NPT Female Port and 2 of 1/8″ NPT Female Exhaust Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Lubrication: Not Required Manifold Block Model: M4V-200 Series 4V210 Series 4 Way Air Directional Control Solenoid Valve Installation Guide: 1. Connect the source to port P. 2. Connect the first outlet to port A. 3. Connect the first exhaust to port R. 4. Connect the second outlet to port B. 5. Connect the second exhaust to port S. 4V210 Series Pneumatic Directional Control Air Solenoid Valve Dimensions (Unit=mm): DIN 43650 Form B (PG9) Connector Dimensions:
