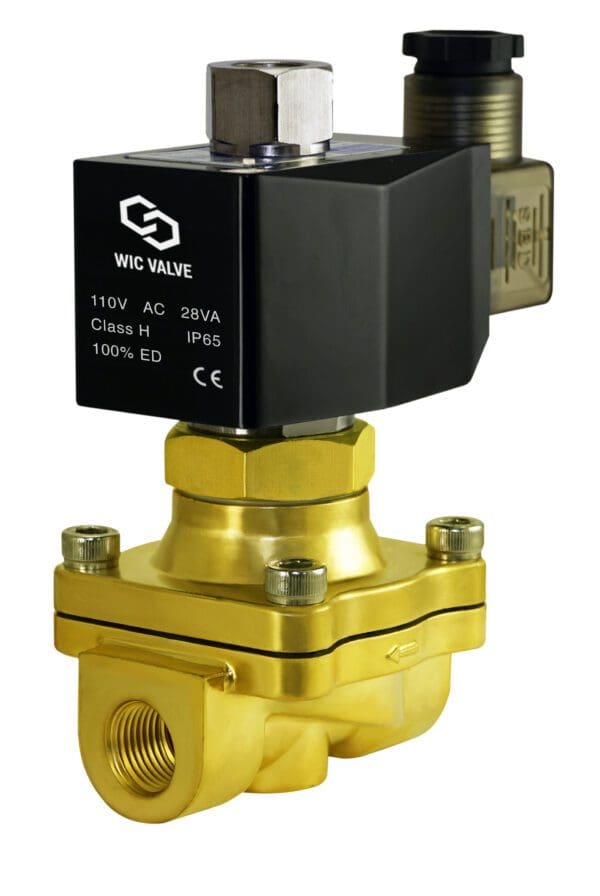

3/8″ Inch Normally Open Zero Differential Electric Water Valve
$66.49
$112.37
Description 3/8″ Inch Normally Open Brass Zero Differential Electric Solenoid Process Valve WIC Valve 2BOW series 2-way normally open general purpose solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized. 2BOW series solenoid valve is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum) and mounted at any position. This industrial brass solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2BOW Series Normally Open Electric Solenoid Water Valve Specification: Valve Type: 2 Way Normally Open (Valve closes with energized) Service Media: Air, Gas, Liquid, Water, Vacuum Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Coil Power: DC – 30W ; AC -50Hz 28VA / 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum to 90 PSI – AC Coil / Vacuum to 80 PSI – DC Coil Operating Temperature: -10 to 80 °C Port Size: 3/8″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator 2BOW Series Normally Open Electric Solenoid Process Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2BOW-3/8-D 3/8″ 4.8 16 56 118 131 68 2BOW-1/2-D 1/2″ 4.8 16 56 118 131 68 2BOW-3/4-D 3/4″ 7.6 20 56 123 140 73 2BOW-1-D 1″ 12 25 74 147 168 100 2BOW-1 1/4-D 1-1/4″ 24 35 85 160 185 110 2BOW-1 1/2-D 1-1/2″ 29 40 90 165 193 120 2BOW-2-D 2″ 48 50 115 176 210 155 2BOW Series Brass Normally Open Electric Solenoid Valve Component Drawing:
