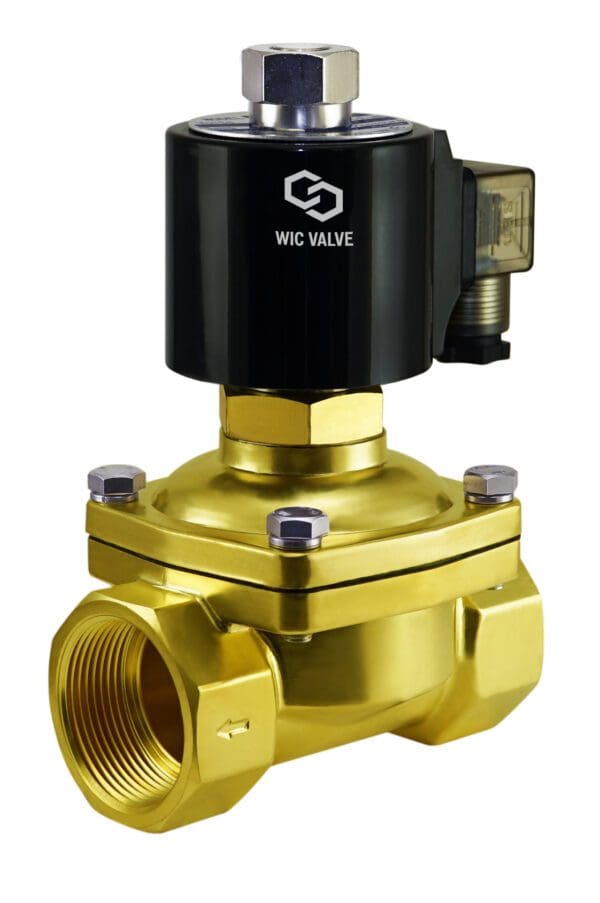

1.25″ Inch Normally Open Electric Solenoid Water Process Valve
$38.72
$54.6
Description 1.25” Inch Normally Open Brass Zero Differential Electric Solenoid Process Valve WIC Valve 2BOW series 2-way normally open general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This industrial solenoid valve has one 1.25″ inch NPT inlet and one 1.25″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized. 2BOW series Solenoid valve is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum) and mounted at any position. 2BOW series normally open electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2BOW Series 1.25″ Inch Normally Open Electric Solenoid Process Valve Specification: Model Number: 2BOW-1 1/4-D Valve Type: 2 Way Normally Open (Valve closes with energized) Service Media: Air, Gas, Liquid, Water, Vacuum Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 40W ; AC – 50/60Hz 35VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum to 90 PSI – AC Coil / Vacuum to 80 PSI – DC Coil Operating Temperature: NBR -10 to 80 °C Port Size: 1.25″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional: 24V DC – 8W, 24V AC – 7VA, 110V AC – 7VA, 220V AC – 9VA Low Power Consumption Inrush Current: 24V DC – 75W, 24V AC – 121VA, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator 2BOW Series 1.25″ Inch Normally Open Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2BOW-3/8-D 3/8″ 4.8 16 56 118 131 68 2BOW-1/2-D 1/2″ 4.8 16 56 118 131 68 2BOW-3/4-D 3/4″ 7.6 20 56 123 140 73 2BOW-1-D 1″ 12 25 74 147 168 100 2BOW-1 1/4-D 1-1/4″ 24 35 85 160 185 110 2BOW-1 1/2-D 1-1/2″ 29 40 90 165 193 120 2BOW-2-D 2″ 48 50 115 176 210 155 2BOW Series Brass Normally Open Electric Solenoid Valve Component Drawing:
