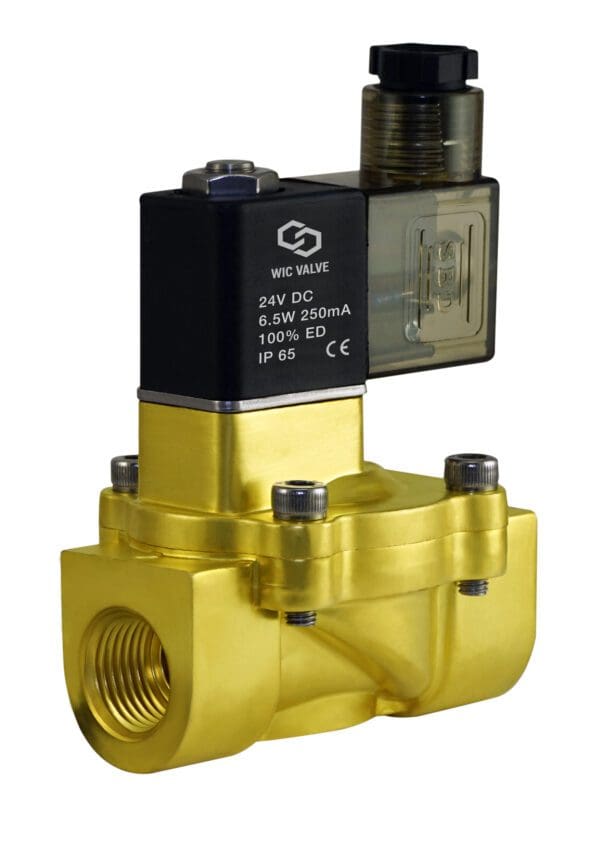

3/8″ Brass Low Power Electric Air Water Solenoid Process Valve
$61.86
$118.15
Description 3/8″ Inch Low Power Consumption Brass Electric Solenoid Process Valve NBR Seal Normally Closed WIC Valve 2BCV Series 2-way normally closed low power consumption electric solenoid process valve is to control On/Off of air, inert gas, liquid, and water. This electric solenoid operated valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2BCV Series solenoid valve comes with a low power consumption ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized, valve can be mounted in any position. 2BCV Series Low Power Consumption Electric Solenoid Process Valve Specification: Model Number: 2BCV-3/8-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Lift Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Power: DC: 6 – 6.5W; AC: 6 – 6.5VA Coil Class: F Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 5 to 115 PSI Operating Temperature: NBR Seal -10 to 80°C Port Size: 3/8″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650B Connector with LED Indicator 2BCV Series Low Power Consumption Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C D 2BCV-3/8-D 3/8″ 4.8 13 48 88 100 72 2BCV-1/2-D 1/2″ 4.8 13 48 88 100 72 2BCV-3/4-D 3/4″ 20 25 70 95 105 100 2BCV-1-D 1″ 20 25 70 95 105 100 2BCV Series Power Save Electric Solenoid Valve Component Drawing:
