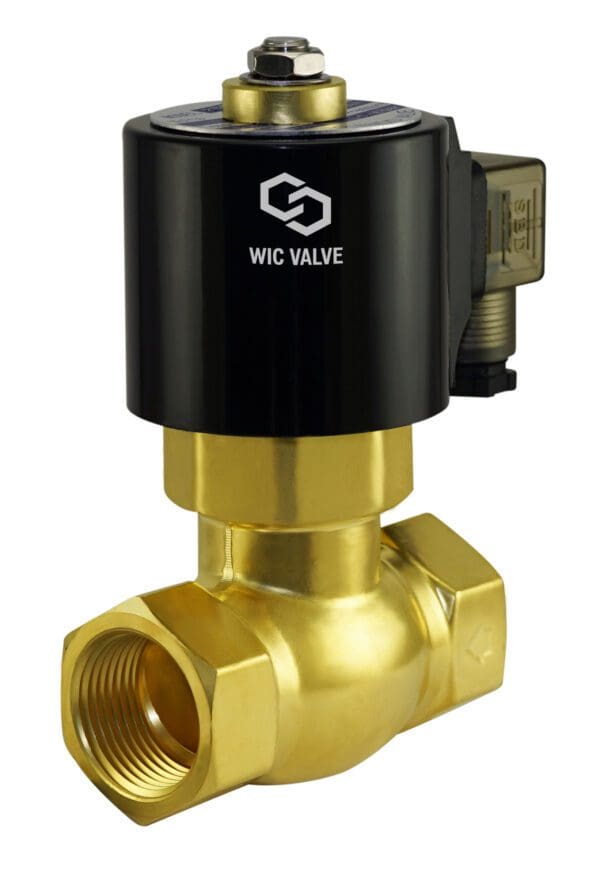

1″ Inch Brass High Pressure Electric Solenoid Steam Valve

Description 1″ Inch High Pressure Brass Electric Steam Solenoid Process Valve Teflon (PTFE) Seal   WIC Valve 2BCL series 2-way normally closed electric solenoid steam valve is ideal for steam application.  This electric solenoid steam valve is to control On/Off of steam, air, liquid and hot water. 2BCL series brass steam solenoid valve has one 1″ inch NPT inlet and one 1″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2BCL series solenoid valve is a high pressure pilot piston solenoid valve, it requires a minimum of 7 PSI to operate.  2BCL series high pressure electric solenoid steam valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  To ensure optimum flow performance, valve should be mounted in vertical position with the coil vertical and inlet/outlet ports horizontal.   2BCL Series Electric Solenoid High Pressure Steam Process Valve Specification: Model Number: 2BCL-1-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Hot Water, Steam Operation Model: Pilot Piston Flow Model: Uni-Directional Body Material: Brass Valve Body Seal Material: Teflon (PTFE) Armature Tube Material: Stainless Steel Coil Power: DC: 30-40W, AC: 35VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 7 to 230 PSI Operating Temperature: -5 to 180°C or 23 to 356 °F Port Size: 1″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator   2BCL Series Brass Electric Solenoid Steam Valve Dimensions (Unit=mm): Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C D 2BCL-1/2-D 1/2″ 4.8 17 69 42 146 82 2BCL-3/4-D 3/4″ 4.8 17 69 42 146 82 2BCL-1-D 1″ 12 20 69 52 162 90 2BCL-1 1/4-D 1-1/4″ 24 22 69 74 185 110 2BCL-1 1/2-D 1-1/2″ 29 22 69 74 185 110 2BCL-2-D 2″ 48 48 69 86 195 120   2BCL Series Brass Electric High Pressure Steam Solenoid Valve Component Drawing:   Valve Frequently Asked Questions:   What is IP65 protection class? Ingress Protection (IP) ratings are developed by the European Committee for Electro Technical Standardization (CENELEC) (NEMA IEC 60529 Degrees of Protection Provided by Enclosures – IP Code), specifying the environmental protection the enclosure provides. The IP rating normally has two (or three) numbers: 1) Protection from solid objects or materials 2) Protection from liquids (water) 3) Protection against mechanical impacts (commonly omitted, the third number is not a part of IEC 60529) IP First number – Protection against solid objects 0 No special protection 1 Protected against solid objects over 50 mm, e.g. accidental touch by persons hands. 2 Protected against solid objects over 12 mm, e.g. persons fingers. 3 Protected against solid objects over 2.5 mm (tools and wires). 4 Protected against solid objects over 1 mm (tools, wires, and small wires). 5 Protected against dust limited ingress (no harmful deposit). 6 Totally protected against dust.  IP Second number – Protection against liquids 0 No protection. 1 Protection against vertically falling drops of water e.g. condensation. 2 Protection against direct sprays of water up to 15o from the vertical. 3 Protected against direct sprays of water up to 60o from the vertical. 4 Protection against water sprayed from all directions – limited ingress permitted. 5 Protected against low pressure jets of water from all directions – limited ingress. 6 Protected against temporary flooding of water, e.g. for use on ship decks – limited ingress permitted. 7 Protected against the effect of immersion between 15 cm and 1 m. 8 Protects against long periods of immersion under pressure.
