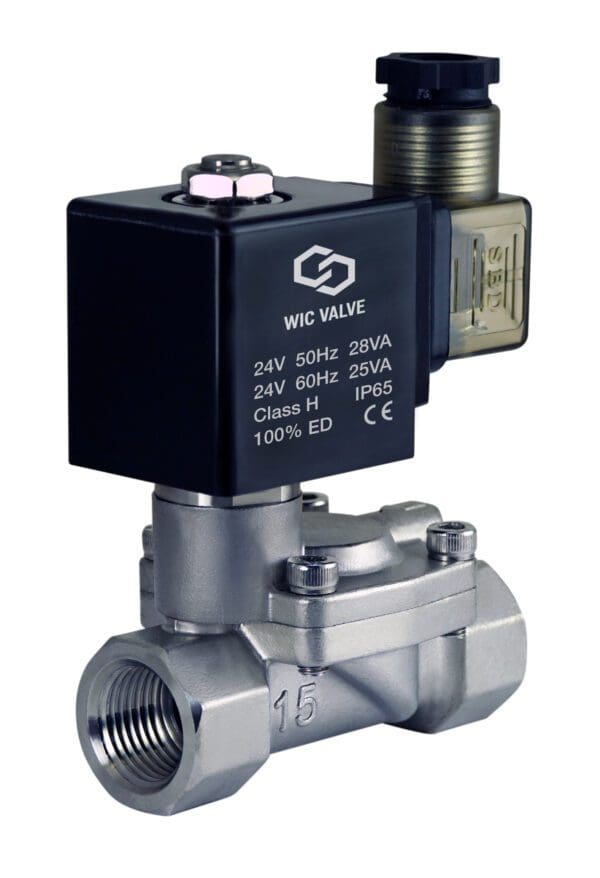

1/2″ Inch Anti Water Hammering Electric Solenoid Valve NC

Description 1/2″ Inch Slow Closing Anti Water Hammering Stainless Steel Electric Solenoid Process Valve Viton Seal   WIC Valve 2SCD series 2 way normally closed slow closing electric solenoid valve is to control On/Off of air, inert gas, liquid, and oil. This industrial electric solenoid valve has one 1/2″ half inch NPT inlet and one 1/2″ half inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCD Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2SCD Series slow closing solenoid valve effectively reduce the water hammer effects, protect against water hammer damage.   2SCD Series Anti Water Hammering Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Oil Operation Model: Slow Closing Pilot Diaphragm Flow Model: Uni-Directional Body Material: Stainless Steel Seal Material: Viton Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W / AC: 50Hz 28VA ; 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 5 to 175 PSI Operating Temperature: -15 to 120 °C (5 to 248 °F) Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil Port Size:  1/2″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator   2SCD Series Slow Closing Electric Solenoid Valve Dimensions (Unit=mm): Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C D 2SCD-1/2-D-V 1/2″ 3.7 15 45 84 98 80 2SCD-3/4-D-V 3/4″ 7 20 52 91 108 87 2SCD-1-D-V 1″ 11.1 25 67 97 118 107 2SCD-1 1/4-D-V 1-1/4″ 14 32 84 100 125 130 2SCD-1 1/2-D-V 1-1/2″ 24.5 40 95 114 143 145 2SCD-2-D-V 2″ 35 50 128 123 158 177   2SCD Series Water Hammer Resistant Electric Solenoid Valve Component Drawing: What is the advantages to use slow closing valve? The 2SCD series valve is a slow closing pilot solenoid valve, the advantages of the slow closing design is to eliminate water hammer problems and protect system against water hammer damage.   What is ED 100% coil duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
