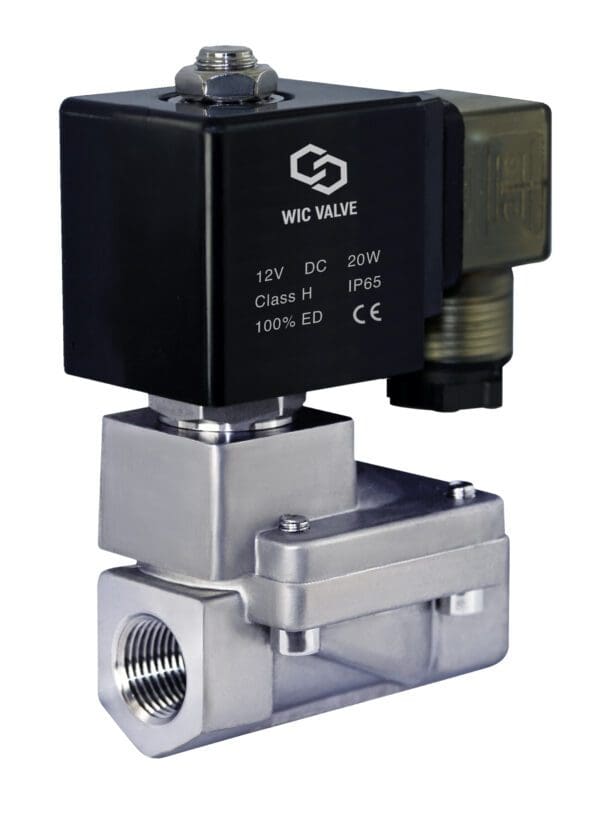

3/8″ SS316 Stainless High Pressure Electric Solenoid Valve NC
$67.63
$85.89
Description 3/8” Inch High Pressure General Purpose SS316 Stainless Steel Electric Solenoid Process Valve Normally Closed WIC Valve 2SCR Series 2-way normally closed general purpose process solenoid valve is to control On/Off of air, inert gas, liquid. This industrial solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2SCR Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. Valve can be mounted in any position. 2SCR Series High Pressure Electric Solenoid Process Valve Specification: Model Number: 2SCR-3/8-D-V Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Diaphragm Flow Model: Uni-Directional Body Material: SS316 Stainless Steel Seal Material: Viton Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Insulation Class: H Class Ingress Protection: IP65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 4.5 PSI to 230 PSI Operating Temperature: -15 to 120 °C (5 to 248 °F) Port Size: 3/8″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Operating Temperature: -15 to 80 °C (5 to 176 °F) With Low Power Consumption Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator 2SCR Series S316 Stainless High Pressure Normally Closed Electric Valve Dimensions (Unit=mm) Model # Port Size (NPT) Flow Rate (Cv) Orifice Size A B C D Weight (lbs) 2SCR-3/8-D-V 3/8″ 4.5 13 48 66 97 112 2 2SCR-1/2-D-V 1/2″ 4.5 13 48 66 97 112 2 2SCR-3/4-D-V 3/4″ 7.6 20 58 75 100 118 2.3 2SCR-1-D-V 1″ 12 25 69 96 101 125 3.5 2SCR-1 1/4-D-V 1-1/4″ 24 32 96 131 120 150 7.2 2SCR-1 1/2-D-V 1-1/2″ 30 40 96 131 120 150 7.2 2SCR-2-D-V 2″ 48 50 120 165 130 165 9.5 2SCR Series Normally Closed High Pressure Electric Solenoid Valve Component Drawing:
