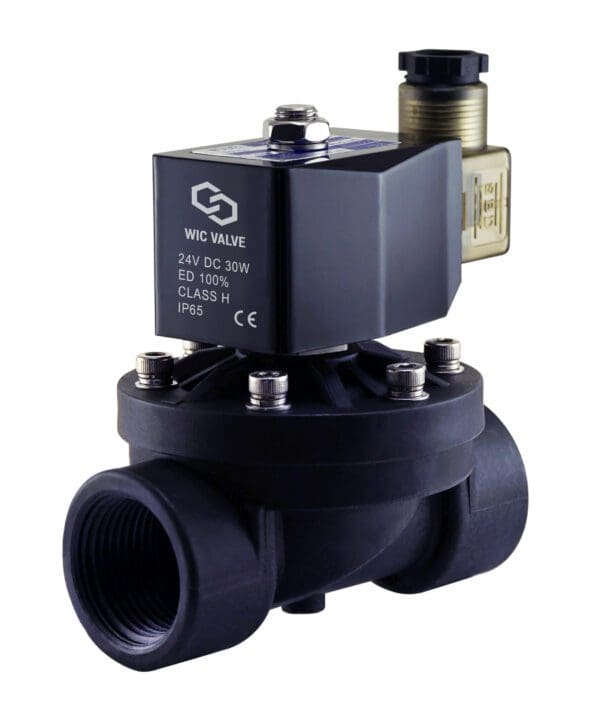

1″ Inch PA66 Plastic Zero Differential Electric Solenoid Valve
$66.42
$87.01
Description 1″ Inch PA66 Plastic Electric Solenoid Process Valve Normally Closed WIC Valve 2PCG Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid, water and vacuum. This electric solenoid valve has one 1″ inlet and one 1″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCG Series electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. Valve can be mounted in any position. 2PCG Series One Inch Plastic Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water, Vacuum Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: PA66 Plastic Valve Body Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Coil Power: DC -30W ; AC – 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum 0 PSI to 90 PSI Operating Temperature: 0 to 50 °C or 32 to 122 °F Port Size: 1″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator 2PCG Series PA66 Plastic Solenoid Process Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C 2PCG-1/2-D 1/2″ 4.8 17 68 107 76 2PCG-3/4-D 3/4″ 7.6 17 68 111 80 2PCG-1-D 1″ 12 20 82 117 107 2PCG-1 1/4-D 1-1/4″ 24 22 112 160 140 2PCG-1 1/2-D 1-1/2″ 29 22 112 170 140 2PCG-2-D 2″ 48 48 130 190 159 2PCG Series Plastic Electric Solenoid Valve Component Drawing:
