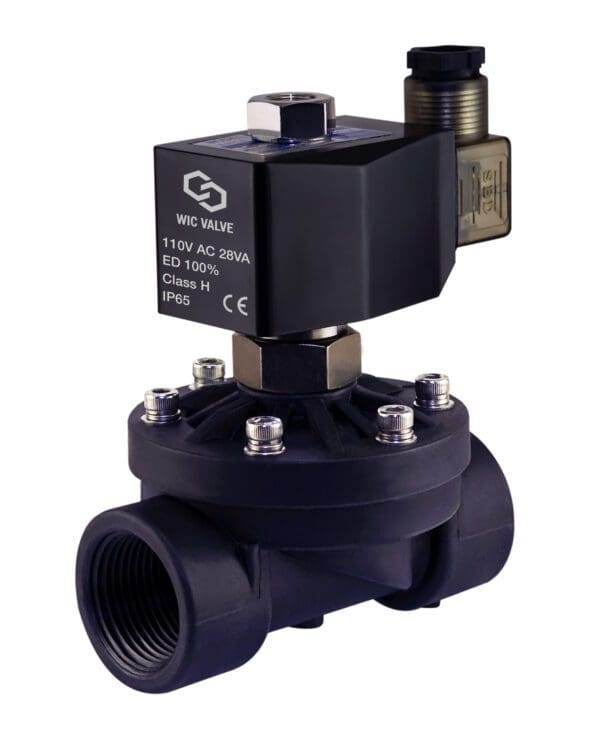

1.5 Inch Plastic Flow Control Electric Solenoid Valve With Manual Override
$40.42
$74.78

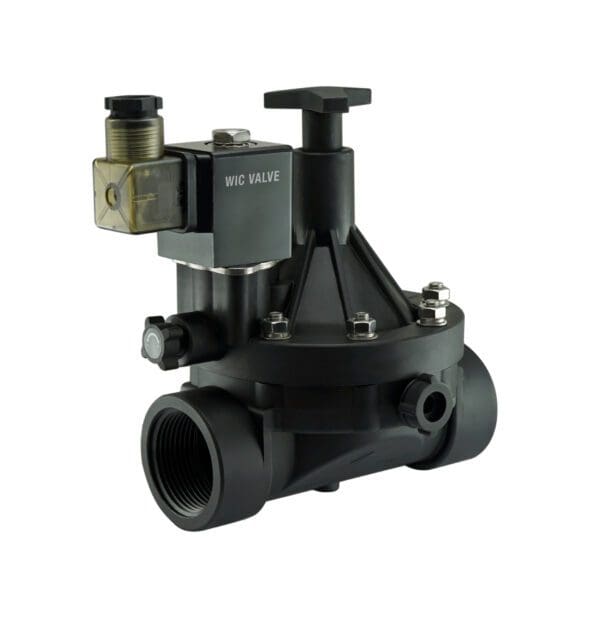

Description 1.5″ Inch PA66 Plastic Flow Control Electric Solenoid Process Valve Manual Override Normally Closed WIC Valve 2PCH series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid and water. This solenoid valve has one 1.5″ inlet and one 1.5″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCH Series solenoid valve with manual override switch, valve can be opened manually when no electricity supply. Valve can be mounted in any position. 2PCH Series 1.5 Inch Plastic Electric Solenoid Water Valve Specification: Model Number: 2PCH-1 1/2-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Body Material: PA66 Plastic Seal Material: NBR (Buna N) Coil Power: DC – 20W / AC: 50Hz 28VA ; 60Hz 25VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 5 PSI to 110 PSI Operating Temperature: 0 to 60°C Port Size: 1.5″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator 2PCH Series PA66 Plastic Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C 2PCH-1/2-D 1/2″ 3.5 15 73 126 85 2PCH-3/4-D 3/4″ 7.6 20 73 128 90 2PCH-1-D 1″ 12 25 90 148 125 2PCH-1 1/4-D 1-1/4″ 20 32 128 173 150 2PCH-1 1/2-D 1-1/2″ 30 40 128 176 152 2PCH-2-D 2″ 48 50 140 190 170 2PCH Series PA66 Electric Solenoid Valve Flow Control Manual Override Components:
