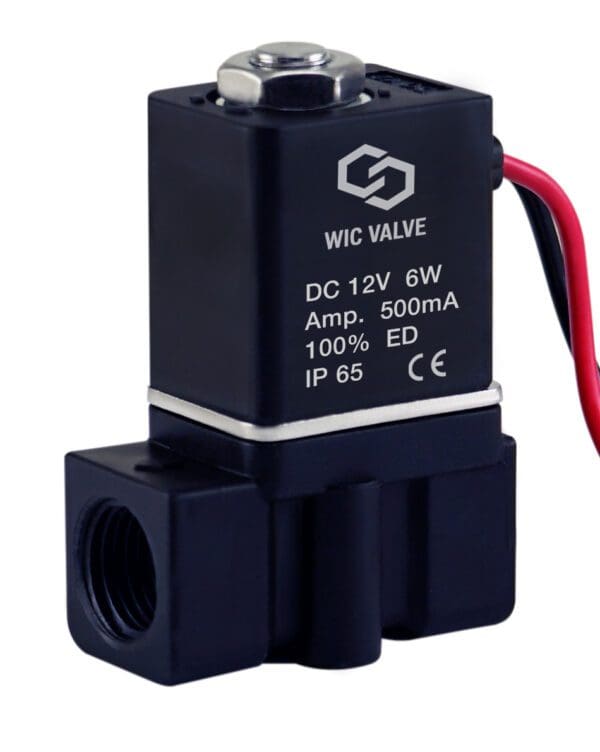

1/8″ Inch Plastic Direct Acting Fast Response Electric Solenoid Valve NC
$17.8
$23.68
Description 1/8″ Inch Fast Response Direct Acting Plastic Electric Solenoid Valve Normally Closed WIC Valve 2PCK series 2-way normally closed general purpose solenoid valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one 1/8″ Inch NPT inlet and one 1/8″ Inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCK series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. This process solenoid valve is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum), valve is equipped with two holes in the bottom, it can be mounted in any position. 2PCK Series Fast Response Direct Acting Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow) Response Time: Less than 20 ms Body Material: Engineered Nylon Plastic (PA66) Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Power: DC: 6-6.5W / AC: 6-6.5VA Coil Class: F Class IP 65 (CE Certification) Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 28″ Hg to 115 PSI Operating Temperature: -5 to 80 °C Port Size: 1/8″ Inch NPT Female Port Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: Grommet Coil with 12″ Lead Wire 2PCK Series Normally Closed PA66 Plastic Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size Length Width Height 2PCK-1/8-G 1/8″ 0.23 2.5 41 25 62 2PCK-1/4-G 1/4″ 0.23 2.5 41 25 62 2PCK Series Normally Closed Zero Differential Electric Solenoid Valve Component Drawing:
