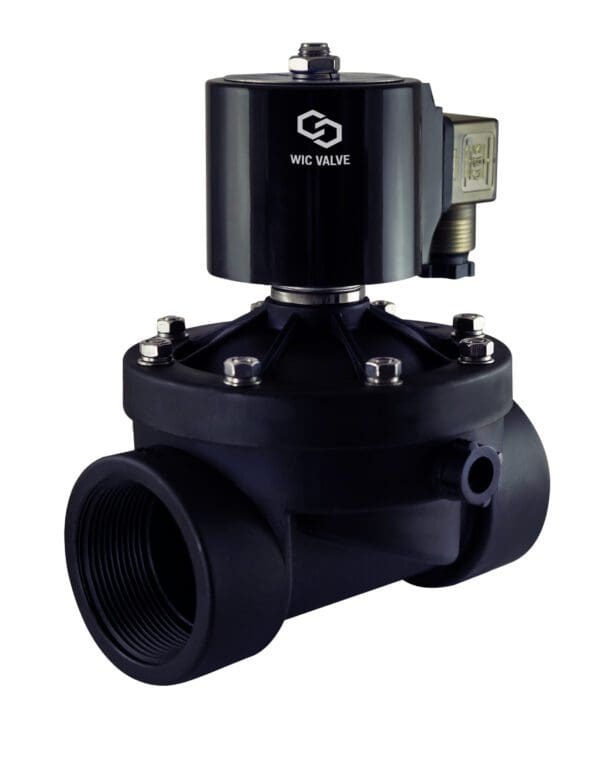

1.25″ Inch Plastic Zero Differential Electric Solenoid Valve
$45.09
$76.2
Description 1.25″ Inch PA66 Plastic High Flow Electric Solenoid Process Valve Normally Closed WIC Valve 2PCG Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid and vacuum. This high flow electric solenoid valve has one 1.25″ inlet and one 1.25″ outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCG Series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. Valve can be mounted in any position. 2PCG Series 1.25″ Inch Plastic Electric Solenoid Valve Specification: Model Number: 2PCG-1 1/4-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water, Vacuum Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: PA66 Plastic Valve Body Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Coil Power: DC: 30-40W, AC: 35VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum 0 PSI to 90 PSI Operating Temperature: 0 to 50 °C or 32 to 122 °F Port Size: 1.25″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional: 24V DC – 8W, 24V AC – 7VA, 110V AC – 7VA, 220V AC – 9VA Low Power Consumption Inrush Current: 24V DC – 75W, 24V AC – 121VA, 110V AC – 50/60Hz 82VA, 220V AC – 50/60Hz 170VA Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator 2PCG Series PA66 Plastic Solenoid Process Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C 2PCG-1/2-D 1/2″ 4.8 17 68 107 76 2PCG-3/4-D 3/4″ 7.6 17 68 111 80 2PCG-1-D 1″ 12 20 82 117 107 2PCG-1 1/4-D 1-1/4″ 24 22 112 160 140 2PCG-1 1/2-D 1-1/2″ 29 22 112 170 140 2PCG-2-D 2″ 48 48 130 190 159 2PCG Series Plastic Electric Solenoid Valve Component Drawing:
