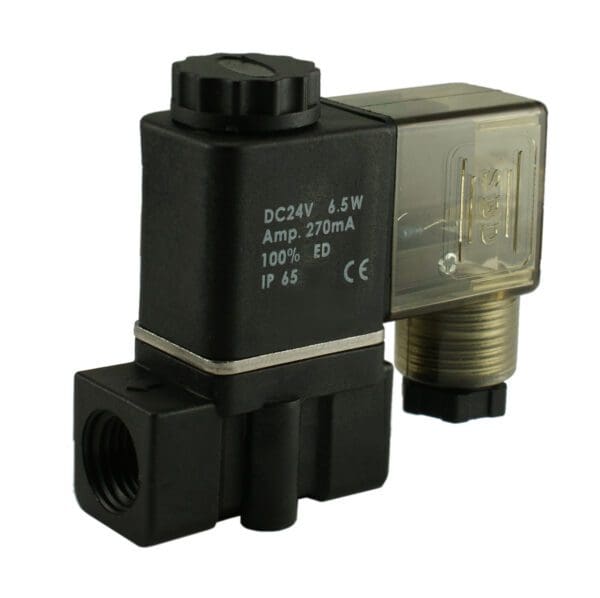

1/4 Inch Plastic Direct Acting Electric Solenoid Process Valve DIN
$18.7
$22.63
Description 1/4″ Inch Plastic Electric Solenoid Fast Response Process Valve With DIN Connector Normally Closed WIC Valve 2PCK series 2-way normally closed fast closing electric solenoid water valve is to control On/Off of air, inert gas, liquid and water. This compact electric process valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCK series solenoid valve is a zero differential valve which can be operated at 0 PSI (Vacuum). 2PCK series compact fast response process valve features with 2 of the M4 size convenient mounting holes and valve can be mounted in any position. 2PCK Series Fast Response Electric Water Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow) Response Time: Less than 20 ms Body Material: Engineered Nylon Plastic (PA66) Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC: 6-6.5W / AC: 6-6.5VA Coil Class: F Class IP 65 (CE Certification) Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 28″” Hg to 115 PSI Operating Temperature: -5 to 80 °C Port Size: 1/4″ Inch NPT Female Port Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: DIN Connector with LED Indicator 2PCK Serie Plastic Fast Acting Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size A B C 2PCK-1/8-D 1/8″ 0.23 2.5 41 62 25 2PCK-1/4-D 1/4″ 0.23 2.5 41 62 25 2PCK Series Direct Acting Zero Differential Plastic Solenoid Valve Component Drawing: Frequently Asked Questions: Grommet Coil Lead Wire Connections: To connect DC Coil, connect one of the two wires to Positive and the other wire to Negative. To connect AC Coil, connect one of the two wires to Hot wire and the other wire to Neutral wire.
