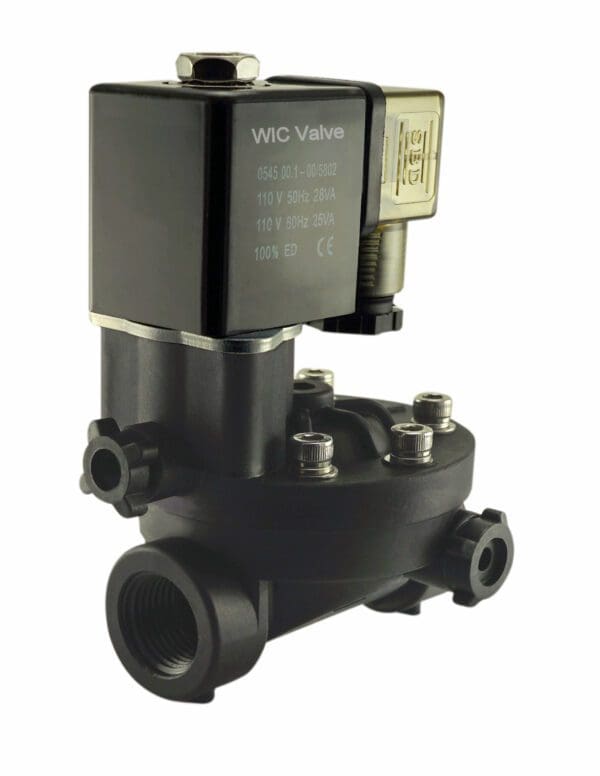

1/4″ Inch Fast Response Plastic Electric Water Solenoid Valve
$17.8
$26.17
Description 1/4″ Inch Fast Response PA66 Plastic Direct Acting Electric Solenoid Valve Normally Closed WIC Valve 2PCK series 2-way normally closed general purpose solenoid valve is to control On/Off of air, inert gas, liquid, and water. This solenoid valve has one 1/4″ inch NPT inlet and one 1/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized. 2PCK series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. This process solenoid valve is a zero differential solenoid valve which can be operated at 0 PSI (Vacuum), valve is equipped with two holes in the bottom, it can be mounted in any position. 2PCK Series Fast Response Electric Solenoid Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Direct Acting Flow Model: Uni-Directional Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow) Response Time: Less than 20 ms Body Material: Engineered Nylon Plastic (PA66) Seal Material: NBR (Buna N) Armature Tube Material: Stainless Steel Plunger & Spring Material: Stainless Steel Coil Power: DC: 6-6.5W / AC: 6-6.5VA Coil Class: F Class IP 65 (CE Certification) Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 28″ Hg to 115 PSI Operating Temperature: -5 to 80 °C Port Size: 1/4″ Inch NPT Female Port Coil Voltage: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: Grommet coil with 12″ Lead Wire 2PCK Series Plastic Electric Solenoid Valve Dimensions (Unit=mm): Model Port (NPT) Flow Rate (Cv) Orifice Size Length Width Height 2PCK-1/8-G 1/8″ 0.23 2.5 41 25 62 2PCK-1/4-G 1/4″ 0.23 2.5 41 25 62 Frequently Asked Questions: Grommet Coil Lead Wire Connections: To connect the DC Coil, connect one of the two wires to Positive and the other wire to Negative. To connect the AC Coil, connect one of the two wires to Hot wire and the other wire to Neutral wire.
