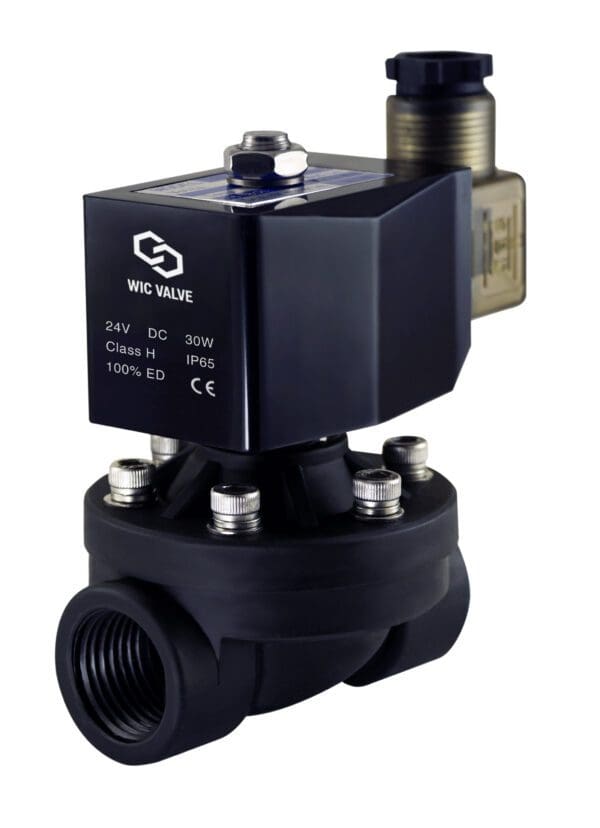

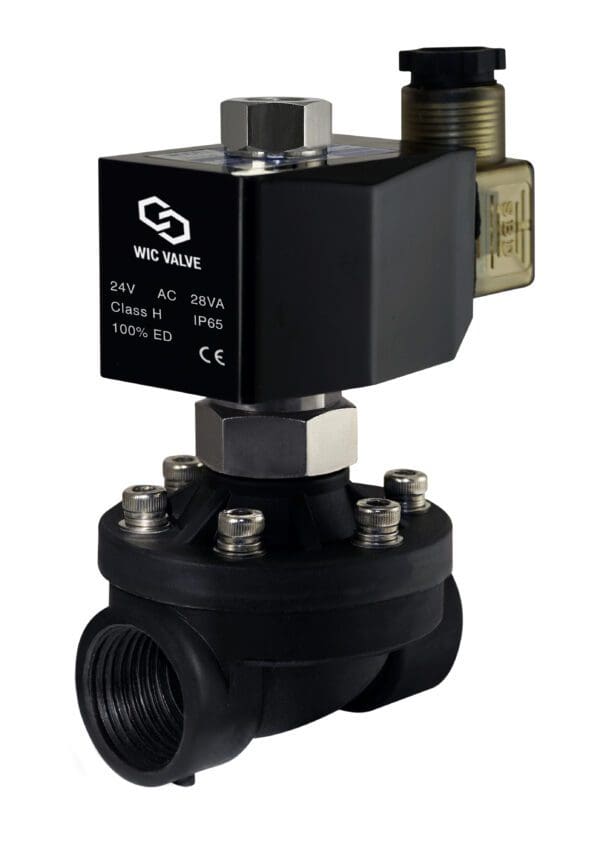

3/4″ Inch Normally Open Electric PA66 Plastic Water Solenoid Valve

Description 3/4″ Inch Normally Open PA66 Plastic Zero Differential Electric Zero Differential Solenoid Valve   WIC Valve 2POG series 2-way normally open solenoid process valve is to control On/Off of air, inert gas, liquid and vacuum. This solenoid valve has one 3/4″ inch NPT inlet and one 3/4″ inch NPT outlet port. Valve stays open when the coil is de-energized, and it closes when energized.  2POG series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized. 2POG series solenoid valve is a zero differential valve which can be operated at 0 PSI (Vacuum), no minimum pressure is required and it can be mounted in any position.     2POG Series Normally Open Plastic Electric Water Solenoid Valve Specification: Valve Type: 2 Way Normally Open (Valve closes with energized) Service Media: Air, Gas, Liquid, Vacuum Operation Model: Direct Lift Diaphragm Body Material: PA Plastic Valve Body Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Coil Power: DC – 30W ; AC – 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum 0 PSI to 90 PSI Operating Temperature: 0 to 50 °C Port Size: 3/4″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 50W, 110V AC – 50/60Hz 85VA, 220V AC – 50/60Hz 154VA Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator   2POG Series Normally Open PA66 Plastic Solenoid Valve Dimensions (Unit=mm):   Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C 2POG-1/2-D 1/2″ 4.8 16 68 121 76 2POG-3/4-D 3/4″ 7.6 20 68 125 80 2POG-1-D 1″ 12 25 82 130 107   2POG Series PA 66 Plastic Normally Open Electric Solenoid Valve Component Drawing:   Frequently Asked Questions:   What is Coil with DIN Connector? Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2POG series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.   What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energised.
