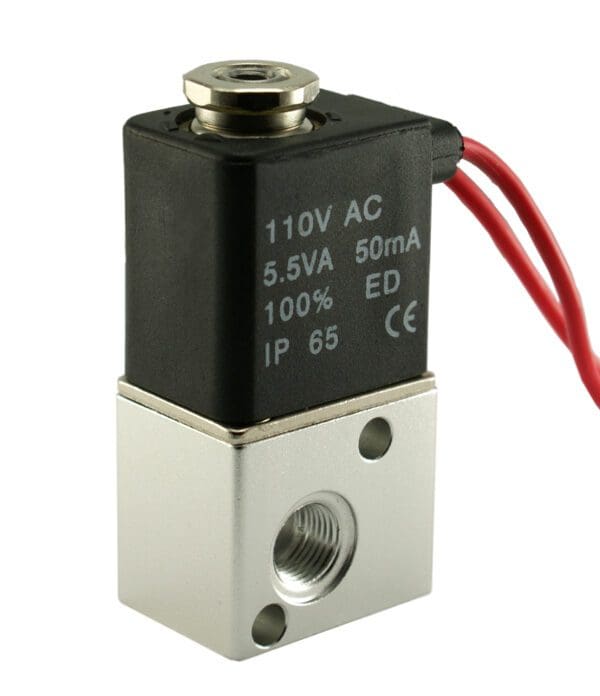

1/8″ Inch 3 Way Directional Control Electric Solenoid Valve
$19.69
$25.8
Description 1/8″ Inch 3 Way Directional Control Electric Solenoid Valve Specification: Valve Type: 3 Way Normally Closed / Normally Open Working Medium: 40Micron Filtered Air, Inert Gas Operation Model: Direct Acting Mounting: Body Ported Orifice Size: 1mm Flow Rate: 0.05Cv (5 SCFM @ 100 PSI) Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 0 to 115 PSI Operating Temperature: -5 to 80 °C Port Size: 1/8″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC Electrical Connection: Grommet with 10″” Lead Wire Lubrication: Not Required 3AK Series 3 Way Electric Solenoid Valve Dimensions (Unit=mm): 3 Way Valve Electrical Connections: For the DC coil, connect one of the two lead wires to Positive, and the lead wire to Negative. For the AC coil, connect one of the two lead wires to Hot wire, and the other lead wire to Neutral wire. 3AK Series Normally Closed Solenoid Valve Installation Diagram: 3AK Series Normally Open Valve Installation Diagram:
