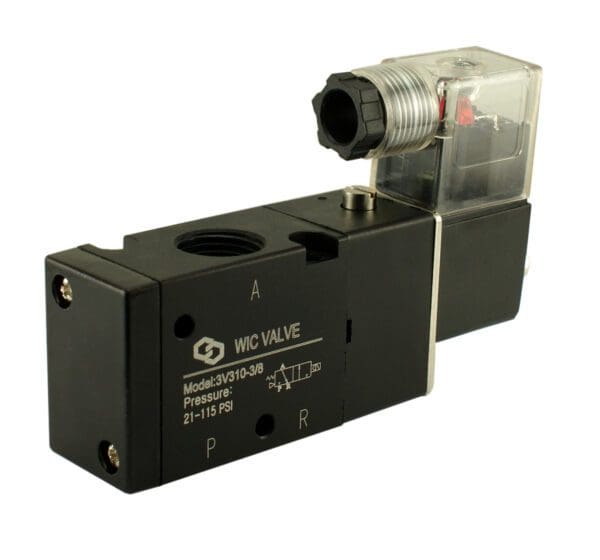

3/8″ 3 Way 2 Position Air Directional Control Solenoid Valve
$35.48
$52.15
Description 3/8″ Inch 3 Way 2 Position Directional Control Air Electric Solenoid Valve WIC Valve 3V310 Series pneumatic in-line 3-way directional control solenoid valves are body ported spool valve. 3V310 Series solenoid valve is a 3 way, 2 position, single solenoid valve. This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid. 3V310 Series directional control valves is a body ported mounting type and valve can be surface mounted. 3V310 series valve is equipped with a manual override button. 3V310 Series directional control valve is commonly use to operate linear motion control components such as single acting spring return air cylinder. 3V310 Series Solenoid Valve Specification: Model Number: 3V310-3/8-D Valve Type: 3 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported Flow Rate: 1.68 Cv Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 3.7W / AC: 3.2VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 2 of 3/8″ NPT Female Port and 1 of 1/4″ NPT Female Exhaust Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Lubrication: Not Required 3V310 Series Air Solenoid Valve Installation Guide: 1. Connect the source to port P. 2. Connect the outlet to port A. 3. Connect the exhaust to port R. 3V310 Series Pneumatic Directional Control Air Solenoid Valve Dimensions (Unit=mm): DIN 43650 Form B (PG9) Connector Dimensions:
