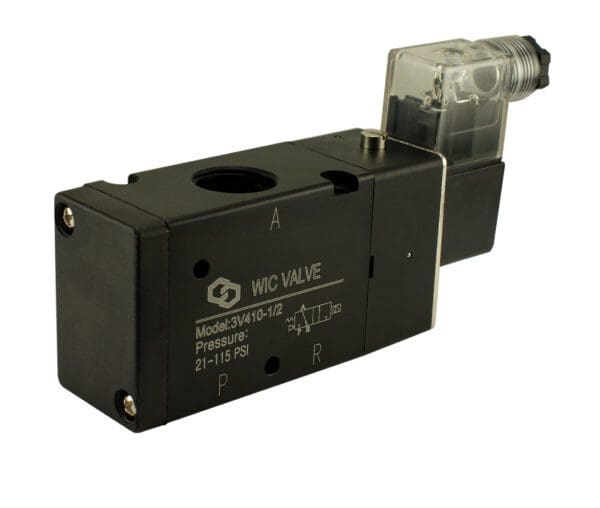

1/2″ Inch 3 Way 2 position Air Directional Control Electric Solenoid Valve
$64.29
$99
Description 1/2″ Inch 3 Way 2 Position Pneumatic Electric Directional Control Air Solenoid Valve WIC Valve 3V410 Series pneumatic in-line 3-way directional control solenoid valves are body ported spool valve. 3V410 Series solenoid valve is a 3 way, 2 position, single solenoid valve. This pneumatic electric solenoid valve is operated by a ED 100% continuous duty solenoid. 3V410 Series directional control valves is a body ported mounting type, valve can be surface mounted. 3V410 series valve is equipped with a manual override button. 3V410 Series directional control valve is commonly use to operate linear motion control components such as single acting spring return air cylinder. 3V410 Series Air Directional Control Electric Solenoid Valve Specification: Valve Type: 3 Way, 2 Position, 1 Single Solenoid Working Medium: 40 Micron Filtered Air Operation Model: Air Pilot Action Model: Spool Design Inner Guide Type Port & Mounting: Body Ported Flow Rate: 2.79 Cv Response Time: Less than 20 ms Body Material: Anodized Aluminum Seal Material: NBR (Buna N) Armature Tube Material: Brass Coil Power: DC: 3.7W / AC: 3.2VA Coil Class: F Class IP 65 Certification: CE Certification Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 21 PSI to 115 PSI Operating Temperature: 14 to 140 °F Port Size: 1/2″ NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Electrical Connection: DIN 43650 Form B (PG9) Connector with LED Indicator Lubrication: Not Required 3V410 Series Air Directional Flow Control Solenoid Valve Installation Guide: 1. Connect the source to port P. 2. Connect the outlet to port A. 3. Connect the exhaust to port R. 3V410 Series Pneumatic Directional Control Solenoid Valve Dimensions (Unit=mm): DIN 43650 Form B (PG9) Connector Dimensions (Unit=mm):
