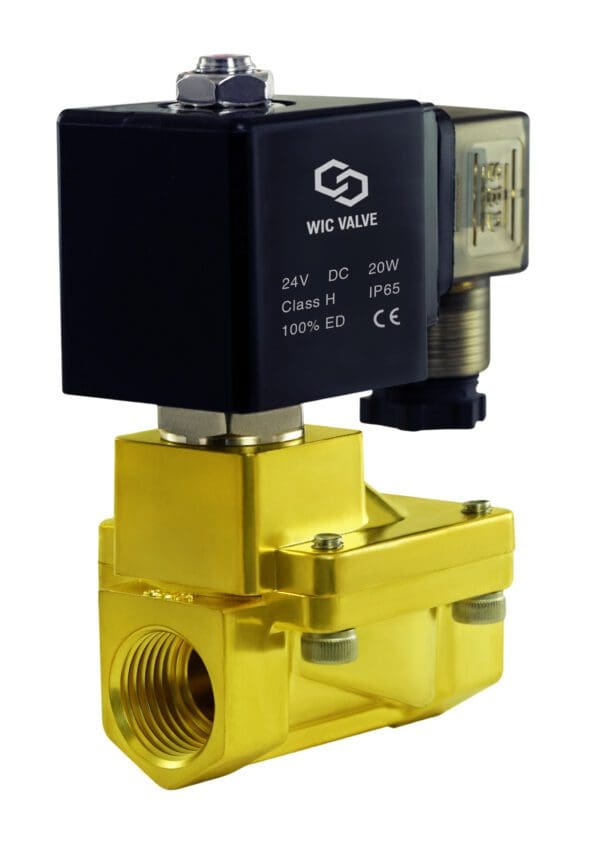

3/8″ High Pressure 230 PSI Air Water Electric Solenoid Valve NC

Description 3/8” Inch High Pressure General Purpose Brass Electric Solenoid Process Valve Normally Closed   WIC Valve 2BCR series 2-way normally closed general purpose electric solenoid process valve is to control On/Off of air, inert gas, liquid and water. This industrial electric solenoid valve has one 3/8″ inch NPT inlet and one 3/8″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2BCR series solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.   2BCR Series High Pressure Electric Solenoid Process Valve Specification: Model Number: 2BCR-3/8-D Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water Operation Model: Pilot Diaphragm Flow Model: Uni-Directional Body Material: Brass Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Armature Tube Material: Stainless Steel Spring & Plunger Material: Stainless Steel Coil Certification: CE Certification Coil Power: DC – 20W ; AC -50Hz 28VA / 60Hz 25VA Insulation Class: H Class Ingress Protection: IP65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: 4.5 PSI to 230 PSI Operating Temperature: NBR -10 to 80 °C (14 to 176 °F) Port Size:  3/8″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 8W, 24V DC – 6W, 24V AC – 9VA, 110V AC – 9VA, 220V AC – 8VA Low Power Consumption Coil Inrush Current: 24V DC – 44W, 110V AC – 95VA, 220V AC – 155VA Low Power Coil Certification: CE Certification DC Coil Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A (PG11) Connector with LED Indicator   2BCR Series High Pressure Normally Closed Electric Process Valve Dimensions (Unit=mm) Model # Port Size (NPT) Flow Rate (Cv) Orifice Size  A B C D Weight (lbs) 2BCR-3/8-D 3/8″ 4.5 13 48 66 97 112 2 2BCR-1/2-D 1/2″ 4.5 13 48 66 97 112 2 2BCR-3/4-D 3/4″ 7.6 20 58 75 100 118 2.3 2BCR-1-D 1″ 12 25 69 96 101 125 3.5 2BCR-1 1/4-D 1-1/4″ 24 32 96 131 120 150 7.2 2BCR-1 1/2-D 1-1/2″ 30 40 96 131 120 150 7.2 2BCR-2-D 2″ 48 50 120 165 130 165 9.5   2BCR Series Normally Closed High Pressure Electric Solenoid Valve Component Drawing: What is Coil with DIN Connector? Instead of using the Grommet lead wires, the coil has the prongs or pins to connect a standard DIN connector. Therefore, the coil will have a male connection and the plug connecting to the coil is a female connector. The DIN connector for this 2BCR series valve is a DIN 43650A 18mm (PG11) type. The advantages of the DIN Connector is that it allows a quick valve or coil exchange. Yet it is a excellent insulation properties and good for water tightness.   What is ED 100% Coil Duty? ED 100% indicates suitability of the coil to operate in “continuous service”, in other words it is good for constantly energized.
