3/4″ Inch PA66 Zero Differential Electric Solenoid Valve

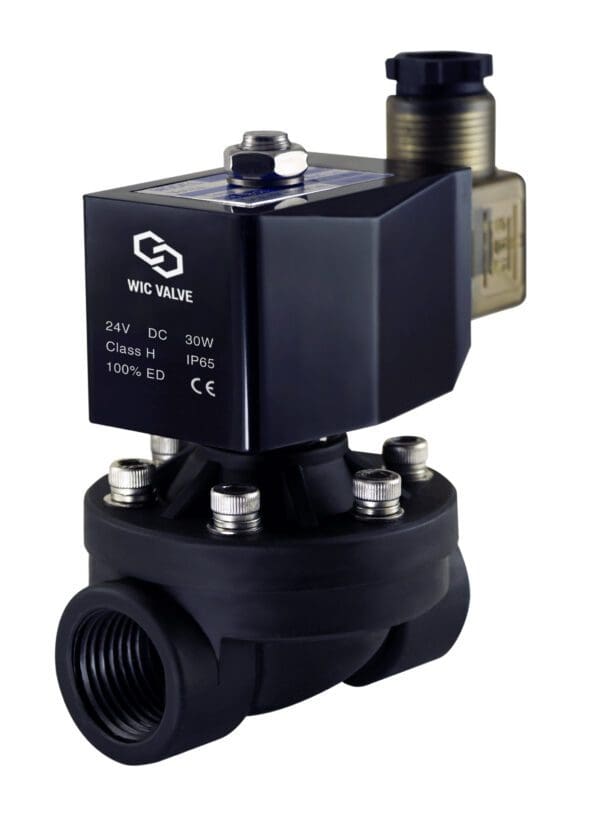

Description 3/4″ Inch PA66 Nylon Plastic Zero Differential Electric Solenoid Process Valve Normally Closed   WIC Valve 2PCG Series 2-way normally closed electric solenoid process valve is to control On/Off of air, inert gas, liquid, and vacuum. This electric solenoid valve has one 3/4″ inch NPT inlet and one 3/4″ inch NPT outlet port. Valve stays close when the coil is de-energized, and it opens when energized.  2PCG Series plastic electric solenoid valve comes with a ED 100% encapsulated coil which suitable to operate in continuous service and constantly energized.  Valve can be mounted in any position.   2PCG Series Zero Differential Electric Solenoid Water Valve Specification: Valve Type: 2 Way Normally Closed (Valve opens with energized) Service Media: Air, Gas, Liquid, Water, Vacuum Operation Model: Direct Lift Diaphragm Flow Model: Uni-Directional Body Material: PA66 Nylon Plastic Seal Material: NBR (Buna N) Diaphragm & Plunger Tip Coil Power: DC – 30W ; AC – 50/60Hz 28VA Coil Class: H Class IP 65 Coil Duty: 100% ED (Continuous Duty) Operating Pressure: Vacuum 0 PSI to 90 PSI Operating Temperature: 0 to 50 °C or 32 to 122 °F Port Size: 3/4″ Inch NPT Female Port Coil Voltage Option: 12V DC, 24V DC, 24V AC, 110V AC, 220V AC Low Power Consumption Coil: Upgrade Optional 12V DC – 10W, 24V DC – 7W, 24V AC – 8VA, 110V AC – 8VA, 220V AC – 8VA Voltage Tolerances: DC: 10% –5% ; AC: 10% -15% Electrical Connection: DIN 43650A Connector with LED Indicator   2PCG Series PA66 Plastic Electric Solenoid Valve Dimensions (Unit=mm): Model  Port (NPT) Flow Rate (Cv) Orifice Size  A B C 2PCG-1/2-D 1/2″ 4.8 17 68 107 76 2PCG-3/4-D 3/4″ 7.6 17 68 111 80 2PCG-1-D 1″ 12 20 82 117 107 2PCG-1 1/4-D 1-1/4″ 24 22 112 160 140 2PCG-1 1/2-D 1-1/2″ 29 22 112 170 140 2PCG-2-D 2″ 48 48 130 190 159   2PCG Series Plastic Electric Solenoid Valve Component Drawing:  How to connect DIN connector with wire? To connect the wire to DIN connector is simple and easy, shown below is the 4 easy steps: 1. Remove the Philip screw from the plastic housing protector. 2. Unplug the plastic housing from the DIN coil. 3. Remove the terminal block from the plastic housing.  Use the Philip screw to push the terminal block out from the plastic housing. 4. On the back of the terminal block, it makes 1, 2 and Ground. For the DC DIN coil, connect 1 to positive, and 2 to negative. For the AC DIN coil, connect 1 to Hot wire, 2 to Neutral wire, and Ground to Ground wire if required.
